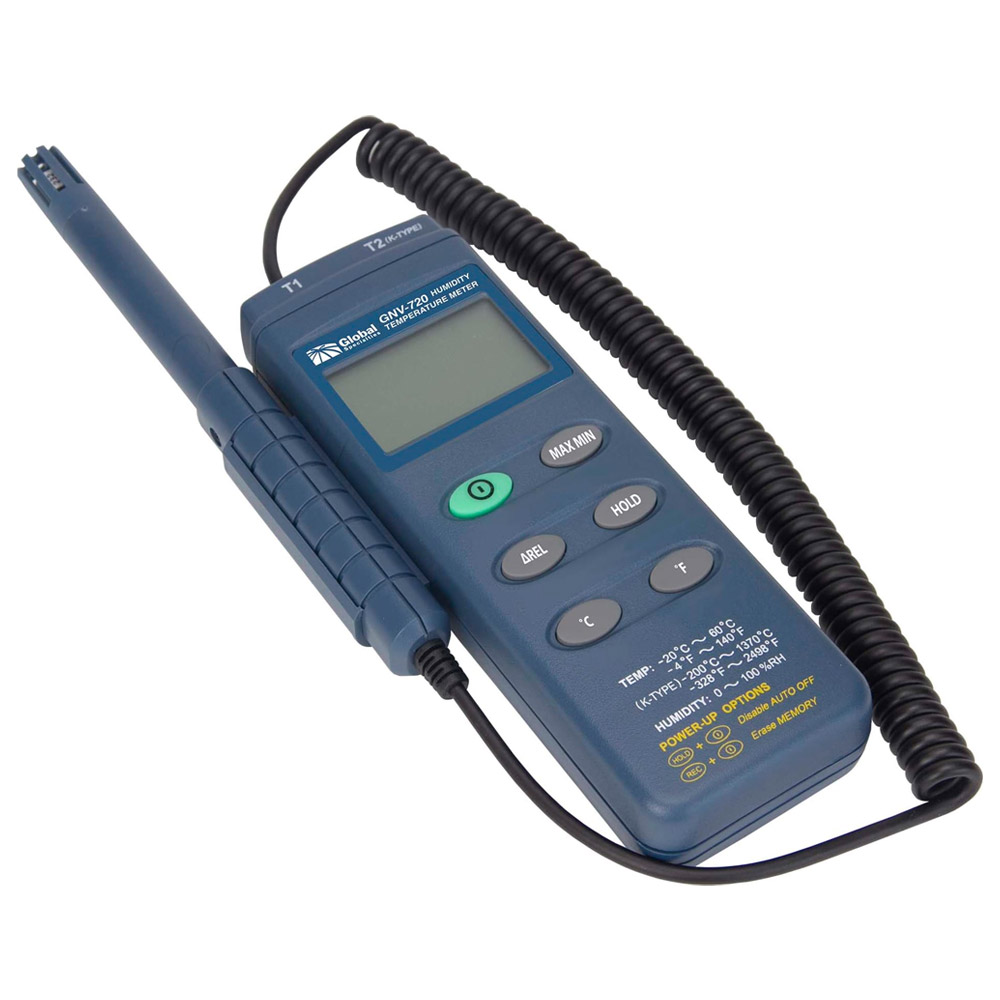

Global Specialties GNV-720 Humidity Temperature Meter
- Remote wand allows for greater placement control of Humidity and T1
- Min/max and auto off functionality
- Relative measurement functionality
The Global Specialties GNV-720 Humidity Temperature Meter is a portable, dual function meter with three environmental sensors. With precision capacitance and semiconductor sensors incorporated directly into the remote wand, more accurate results may be obtained by the ability to direct the sensor placement. This is further enhanced when the thermocouple sensor is attached and all three measurements are displayed simultaneously on the LCD screen. Increase the functionality of the GNV-720 by connecting it to a PC to view and control, in real time, this meter (requires optional SE-300 cable).
Manufacturer Specs
| General Specifications |
| Humidity Range |
0% to 100% RH |
| Temperature Range (T1) |
-20 °C to +60 °C (-4 °F to +140 °F) |
| Temperature Range (T2) |
-200 °C to +1370 °C (-328 °F to +2498 °F) |
| Humidity Accuracy |
ą2.5% RH |
| Temperature Accuracy (T1) |
ą0.7 °C (ą1.4 °F) |
| Temperature Accuracy (T2) |
ą0.5% rdg + 1 °C (ą0.5% rdg +2 °F) |
| Response Time Humidity |
75 s |
| Response Time Temperature |
40 s |
| Signal Output |
RS-232 data output |
| Approx. Battery Life |
100 hrs |
| Meter Dimensions |
186 x 64 x 30 mm |
| Wand Dimensions |
190 x 15(D) mm |
Tech Specs
Test Equipment General Attributes
|
| HTS/Schedule B Number |
9027.80.8090 |
| ECCN Number |
EAR99 |
| Country of Origin |
Taiwan |
