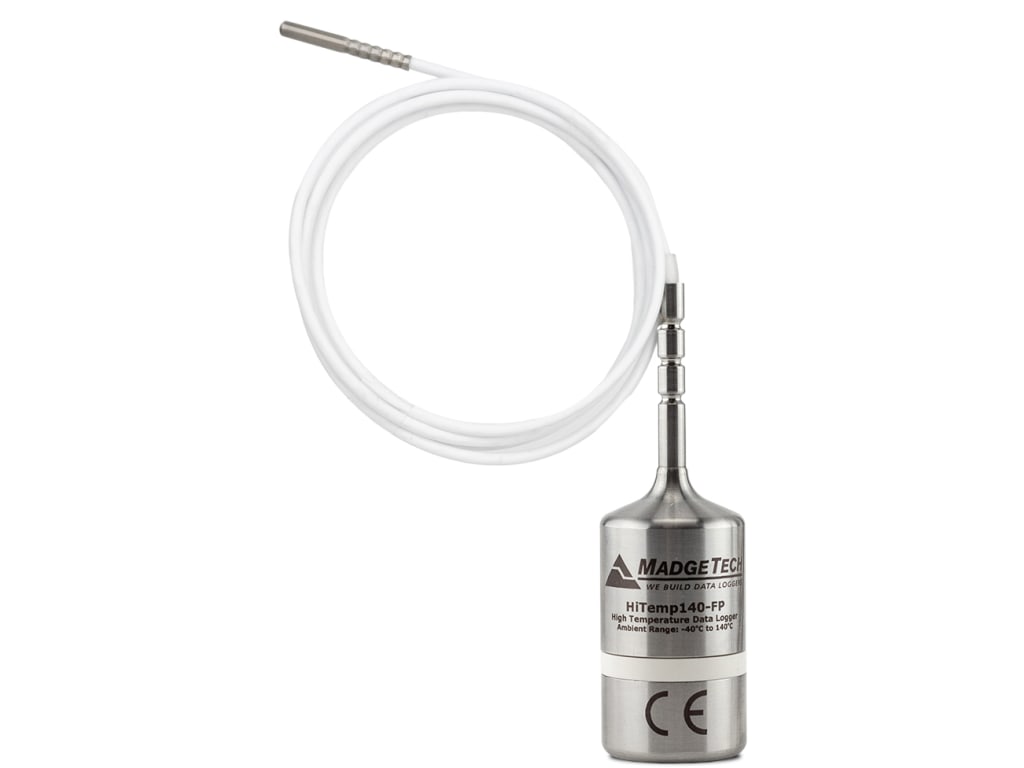

Madgetech HiTemp140-FP-6-KR – High Temperature Data logger
- High Temperature Data logger
- Includes: 6 inch Flexible Probe and Steel Tip with Keyring
- ±0.1 °C (0.18 °F) Accuracy
- Probe Measurement Range -60 °C to +260 °C
- Operating Environment -40 °C to +140 °C
- Submersible (IP68)
The HiTemp140-FP is a high temperature data logger built for use in harsh environments. The body of the HiTemp140-FP can withstand temperatures ranging from -40 °C to +140 °C (-40 °F to +284 °F), but can extend to higher temperatures when used with MadgeTech’s thermal barrier options.
The HiTemp140-FP is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MadgeTech 4 Software Features
- Multiple graph overlay
- Statistics
- Digital calibration
- Zoom in/ zoom out
- Lethality equations (F0, PU)
- Mean Kinetic Temperature
- Full time zone support
- Data annotation
- Min./Max./Average lines
- Summary view
Cooling Flags
Export to Excel
Tabular Data View
Automation
Manufacturer Specs
| TEMPERATURE | ||
| Temperature Sensor | Flexible RTD Probe | |
| Probe Measurement Range | -60 °C to +260 °C (-76 °F to +500 °F) | |
| Temperature Resolution | 0.01 °C (0.02 °F) | |
| Calibrated Accuracy | ±0.1 °C ( 0.18 °F) | |
| GENERAL | ||
| Start Modes | Software programmable immediate start Delay start up to 18 months in advance | |
| Stop Modes | Manual or Timed (specific date and time) | |
| Data Logger Response Time | In Air | In Water |
| (hours : minutes : seconds : fractions of a second) | ||
| t60 – 00:00:30:00 t90 – 00:01:10:00 |
t60 – 00:00:03:50 t90 – 00:00:06:50 |
|
| Trigger Settings | High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers | |
| Readings in Trigger Settings Mode | 21,845 readings | |
| Real Time Recording | May be used with PC to monitor and record data in real time | |
| Password Protection | An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password | |
| Memory | 65,536 readings | |
| Wrap Around | Yes | |
| Reading Rate | 4 readings per second up to 1 reading every 24 hours | |
| Calibration | Digital calibration through software | |
| Calibration Date | Automatically recorded within device | |
| Battery Type | 3.6V high-temperature lithium battery included; user replaceable | |
| Battery Life | 1 year typical (1 minute reading rate at 25 °C/ 77 °F) | |
| Data Format | Date and time stamped °C, K, °F or °R | |
| Time Accuracy | ±1 minute/month at 25 °C Extended Operation: ±20 minutes/month at 140 °C (±450 ppm) | |
| Computer Interface | IFC400 OR IFC406 USB docking station required; 125,000 baud | |
| Operating System | Compatibility Windows XP SP3 or later | |
| Software Compatibility | MadgeTech Standard Software version 4.2.1.1 or later MadgeTech Secure Software version 4.2.0.1 or later | |
| Operating Environment | -40 °C to +140 °C (-40 °F to +284 °F) 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA |
|
| IP Rating | IP68 | |
| Dimensions | 2.95 in x 0.97 in x 0.97 in (75 mm x 24.6 mm x 24.6 mm) | |
| Dimensions (Probe) | HiTemp140-FPST-6: 6 in x 0.13 in (152 mm x 3.2 mm) HiTemp140-FPST-12: 12 in x 0.13 in (305 mm x 3.2mm) HiTemp140-FPST-36: 36 in x 0.13 in (914 mm x 3.2mm) HiTemp140-FPST-72: 72 in x 0.13 in (1829 mm x 3.2 mm) |
|
| Weight | 3 oz (85 g) | |
| Material Body | Body: 316 Stainless Steel Probe: PFA Insulated Cable with Stainless Steel Tip |
|
| Approvals | CE | |
Probe Measurement Range -60 °C to +260 °C (-76 °F to +500 °F) Temperature Resolution 0.01 °C (0.02 °F) Calibrated Accuracy ą0.1 °C ( 0.18 °F) GENERAL Start Modes Software programmable immediate start Delay start up to 18 months in advance Stop Modes Manual or Timed (specific date and time) Data Logger Response Time In Air In Water (hours : minutes : seconds : fractions of a second) t60 – 00:00:30:00
t90 – 00:01:10:00 t60 – 00:00:03:50
t90 – 00:00:06:50 Trigger Settings High and Low limits may be set. Once data meets or exceed sets limits, the device will record to memory. Bi-level start and stop triggers can also be programmed. Users can specify the number of readings to take after the device triggers Readings in Trigger Settings Mode 21,845 readings Real Time Recording May be used with PC to monitor and record data in real time Password Protection An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password Memory 65,536 readings Wrap Around Yes Reading Rate 4 readings per second up to 1 reading every 24 hours Calibration Digital calibration through software Calibration Date Automatically recorded within device Battery Type 3.6V high-temperature lithium battery included; user replaceable Battery Life 1 year typical (1 minute reading rate at 25 °C/ 77 °F) Data Format Date and time stamped °C, K, °F or °R Time Accuracy ą1 minute/month at 25 °C Extended Operation: ą20 minutes/month at 140 °C (ą450 ppm) Computer Interface IFC400 OR IFC406 USB docking station required; 125,000 baud Operating System Compatibility Windows XP SP3 or later Software Compatibility MadgeTech Standard Software version 4.2.1.1 or later MadgeTech Secure Software version 4.2.0.1 or later Operating Environment -40 °C to +140 °C (-40 °F to +284 °F)
0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA IP Rating IP68 Dimensions 2.95 in x 0.97 in x 0.97 in (75 mm x 24.6 mm x 24.6 mm) Dimensions (Probe) HiTemp140-FPST-6: 6 in x 0.13 in (152 mm x 3.2 mm)
HiTemp140-FPST-12: 12 in x 0.13 in (305 mm x 3.2mm)
HiTemp140-FPST-36: 36 in x 0.13 in (914 mm x 3.2mm)
HiTemp140-FPST-72: 72 in x 0.13 in (1829 mm x 3.2 mm) Weight 3 oz (85 g) Material Body Body: 316 Stainless Steel
Probe: PFA Insulated Cable with Stainless Steel Tip Approvals CE
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | RTD |
| Max Temperature | 260 C |
| Min Temperature | -60 C (-76 F) |
| Power Source | Battery |
| Battery Life | 1 YEARS (8760 HR) |
| Input Source | Internal Probe |
| Software Included | Yes |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| IP Rating | IP68 |
| Product Weight | 0.2 LBS |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
