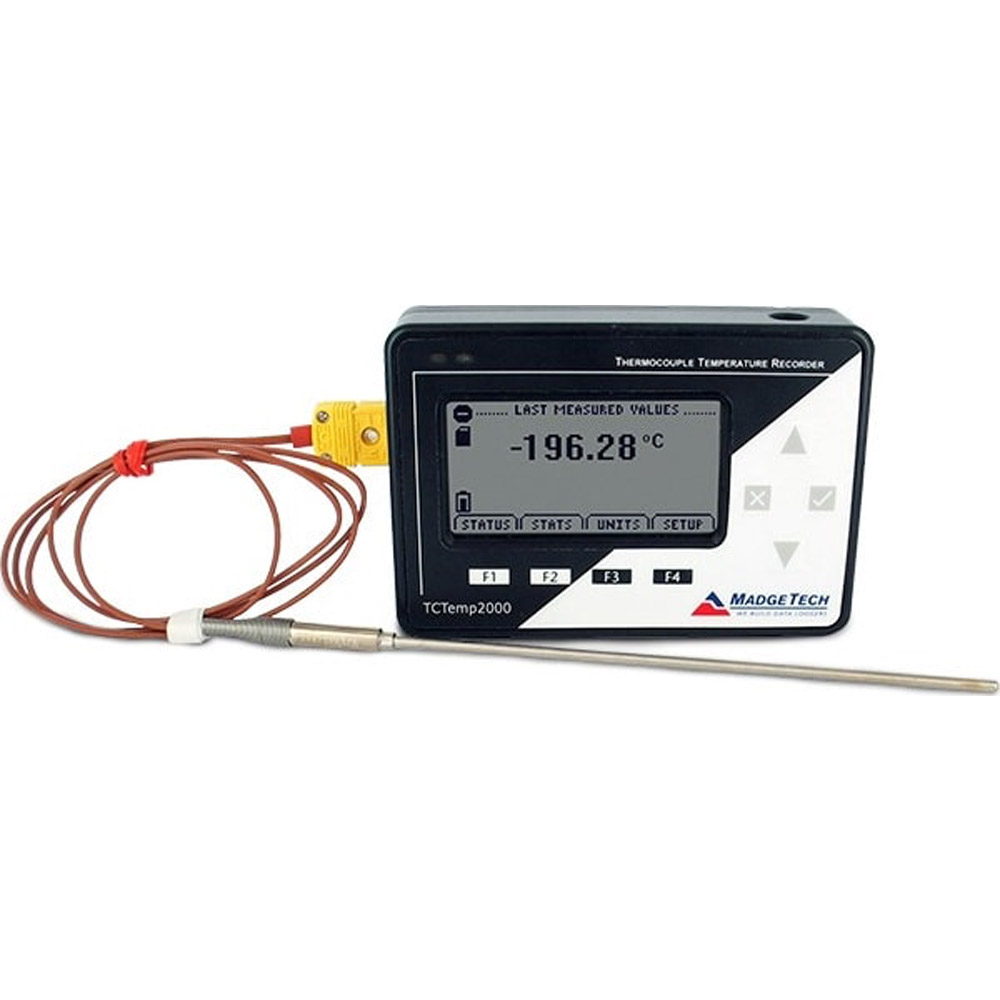

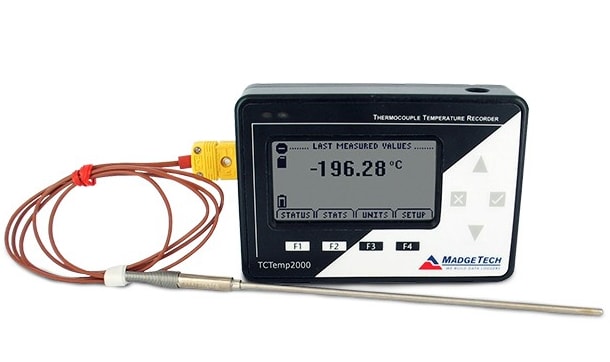

Madgetech LNDS – Liquid Nitrogen Data Logging System
- Min./max. & average statistics
- Front keypad w/lock feature
- User replaceable battery and external power
- Provides complete time vs. temperature history
- Thermocouple calibrated at –196 ºC, -80 ºC, and 0 ºC for improved accuracy at lower temperatures
MadgeTech’s LNDS, Liquid Nitrogen Data Logging System, is an ultra-low temperature measurement system created specifically for the monitoring of temperature sensitive substances that need to be preserved at cryogenic temperatures.
The LNDS can be mounted to the top or outer of a cryo-shipper or freezer, and the probe sheath can be inserted into the tank. The user can then directly view the internal temperature through the LCD on the logger. Also, a variety of probe sizes are available.
MadgeTech’s LNDS is easily user programmable with pre selected sample rates from between 2 seconds to 24 hours, and it features a programmable start time and date, up to six months in advance.
The 8-button membrane keypad and large LCD provides the user with the ability to view the current reading, minimum, maximum, and average statistics, in real-time. The non-volatile memory will retain data even if AC and battery power are lost. Also, the 9-volt battery it runs on is both user-replaceable and cost effective.
The Liquid Nitrogen Monitoring System includes the TCTemp2000 data logger with a calibration certification, thermocouple probe, and 9 volt AC wall mounted power adaptor.
Product Notes
The LNDS is a liquid nitrogen monitoring and data logging system. The thermocouple can be placed into the liquid nitrogen tank with the lid closed upon it. Verify the thermocouple probe is sealed by the gasket on the lid. A type E thermocouple is supplied with the system and is recommended for use with the LNDS. The convenient LCD provides access to the current temperature, as well as minimum, maximum and average statistics.
Manufacturer Specs
| General Specifications | |
| Memory | 131,071/channel |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic, based on internal channel |
| Battery Life | 1 year battery life at 1 min reading rate with display off. 30 days typical with continuous LCD and no backlight usage. Optional AC Adapter available. |
| Material | Black anodized aluminum |
| Dimensions | 4.8 in x 3.3 in x 1.25 in (122 mm x 84 mm x 32 mm) |
| Operating Environment | -20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 (recommended) or IFC110 |
| Approvals | CE |
| Weight | 0.5000 LBS |
| Temperature | |
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Range | -20 °C to +60 °C (-4 °F to +140 °F) |
| Internal Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C (±0.9 °F) |
| Remote Channel Temperature Sensor | Type E Thermocouple (included) |
| Remote Channel Temperature Range | -200 °C to +260 °C (-328 °F to +500 °F) |
| Remote Channel Temperature Resolution | 0.1 °C (0.18 °F) |
| Remote Channel Temperature Calibrated Accuracy | ±0.5 °C (±0.9 °F) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | E |
| Max Temperature | 140 F (60 C) |
| Min Temperature | -4 F |
| Power Source | Battery |
| Battery Life | 8760 HR |
| Accuracy | ±0.5 ºC (0 to +50 ºC) |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Interfaces I/O | Other, USB |
| Storage | Internal Memory |
| Product Weight | 1 LBS |
| Product Height | 1.25 IN |
| Product Length | 3.3 IN |
| Product Width | 4.8 IN |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
