Descripción
- 8-Channel Oven Temperature Profiler and American power supply
- NIST traceable
- Programmable start time
- Reusable
- Convenient size

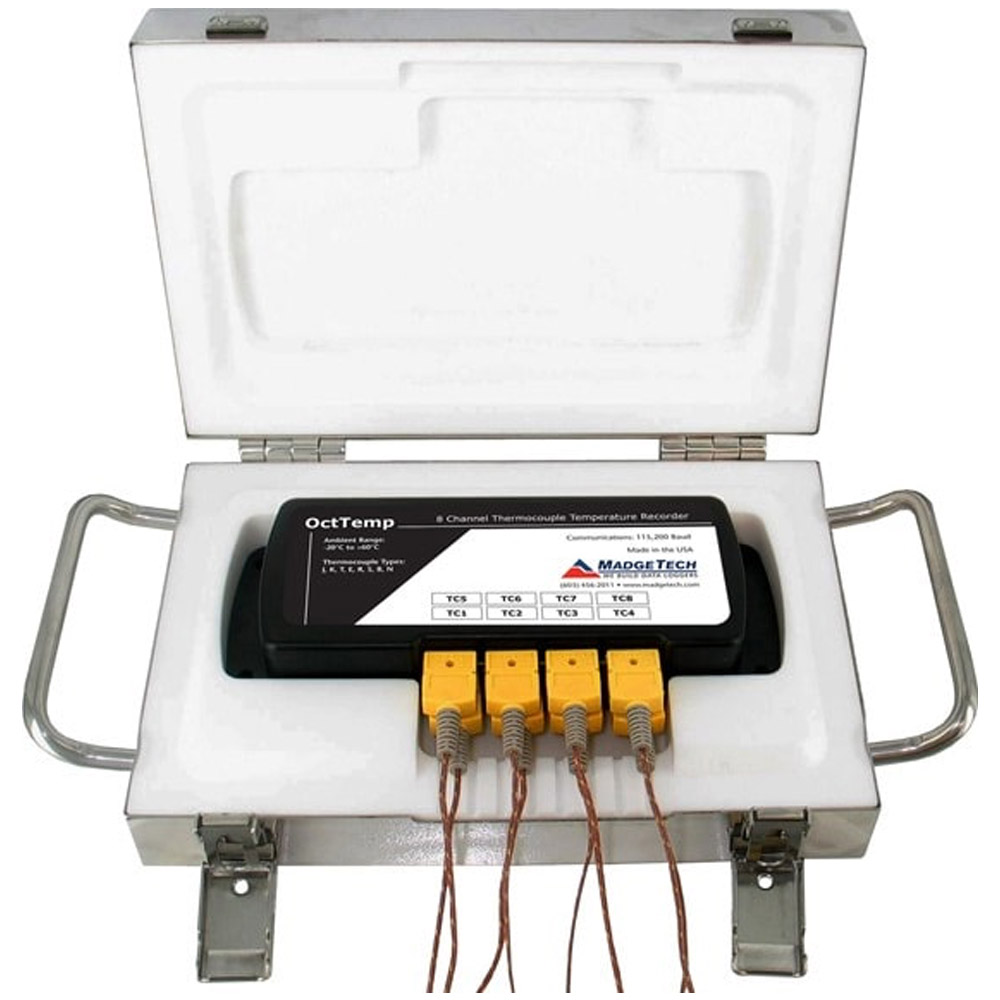

Madgetech OctTemp
Oven temperature profiling can help ensure that a quality product is consistently produced. Profiling enables users to optimize their process, prove process control and make corrections to a process when required. The OctThermoVault is an eight channel thermally insulated, battery powered, oven temperature recorder able to withstand extreme temperatures. It can withstand oven temperatures of up to 662 ºF for up to 25 minutes when properly sealed. Its stainless steel enclosure and thermal properties lend itself to be the ideal temperature recording device for applications such as powder coating cure ovens, wet coating cure ovens, batch ovens and conveyor ovens. The external thermocouple probes provide accurate temperature measurements, with fast response times. Our user-friendly software easily downloads the data to a computer, where the readings may be displayed in degrees Celsius, degrees Fahrenheit, Kelvin or Rankine. The software allows the user to view all data points or a range of data points and a summary of the data being viewed for calculations such as Mean Kinetic Temperature (MKT). If additional analysis of the data needs to be performed, the data can be easily exported to Excel® by simply clicking a button.
Product Notes
Operating Environment
The QuadThermoVault is an oven temperature recorder that consists of a QuadTemp inside a thermal enclosure. The OctThermoVault is the same, only with an 8-channel OctTemp inside. The thermal enclosure acts as a buffer and allows the device to be placed in higher operating environments for certain durations of time. The chart outlines the maximum temperature and time duration to which the device can be exposed.
Thermocouple Type
To change the thermocouple type in the MadgeTech software:
– In the Connected Devices panel, click the device desired.
– On the Device Tab, in the Information Group, click Properties. Or, right-click the device and select Properties in the context menu.
– On the General Tab, change the Thermocouple type in the drop down menu.
– Apply these changes, there will be a prompt to reset the device, select yes.
– In the Connected Devices panel, click the device desired.
– On the Device Tab, in the Information Group, click Properties. Or, right-click the device and select Properties in the context menu.
– On the General Tab, change the Thermocouple type in the drop down menu.
– Apply these changes, there will be a prompt to reset the device, select yes.
Manufacturer Specs
| General Specification | |
| Memory | 500,000 readings per channel |
| Reading Rate | 4 Hz |
| Baud Rate | 115,200 |
| Cold Junction Compensation | Automatic |
| Channels | 8 Internal & 8 Remote |
| Battery Life | 18 Months |
| Material | 304 stainless steel w/ PTFE insulation |
| Dimensions | 9.1 in x 5.9 in x 2.45 in (231 mm x 149 mm x 62 mm) |
| Operating Environment | See Data sheet, 0 %RH to 95 %RH, non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Weight | 9.0000 LBS |
| Temperature | |
| Internal Channel Temperature Sensor | Semiconductor |
| Internal Channel Temperature Resolution | 0.5 °C (0.9 °F) |
| Internal Channel Temperature Calibrated Accuracy | ±0.5 °C |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B ,N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | K |
| Max Temperature | 140 F (60 C) |
| Min Temperature | -4 F |
| Power Source | Battery |
| Battery Life | 13140 HR |
| Input Source | External Probe |
| Accuracy | ±0.5 ºC (0 ºC to +50 ºC) |
Test Equipment General Attributes |
|
| Interfaces I/O | USB |
| Storage | Internal Memory |
| Product Weight | 9 LBS |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
