Descripción

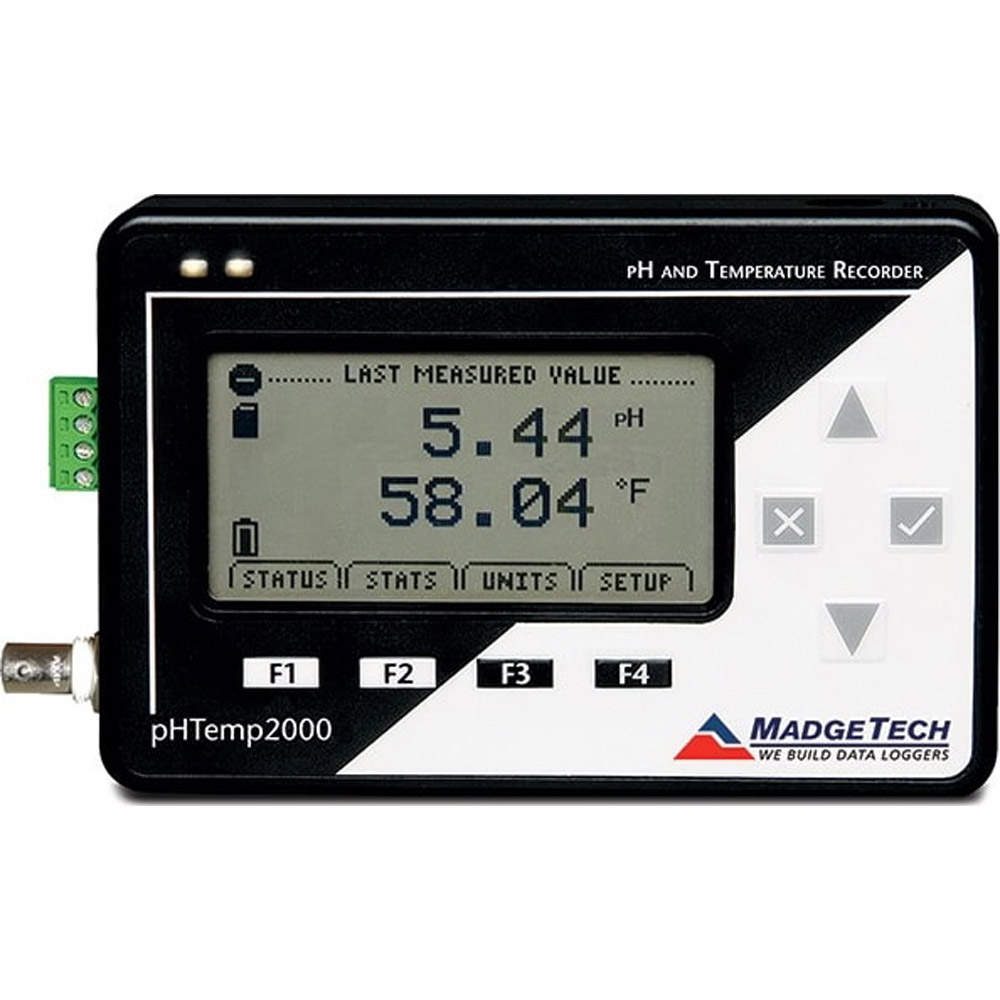

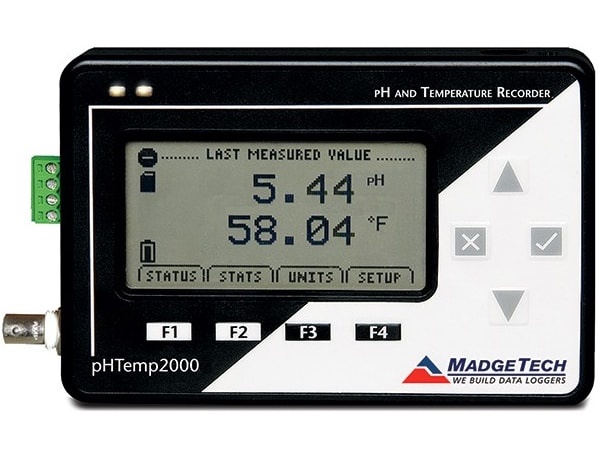

Madgetech pHTemp2000 – pH and Temperature Recorder
- Automatic temperature compensation
- Programmable start time
- Real time operation
- Programmable engineering units
- pH and Temperature Recorder with LCD Display and universal power supply
The pHTemp2000 is a battery powered, stand alone pH and temperature logger with an LCD. This all-in-one compact, portable, easy to use device will measure and record up to 131,071 readings per channel. The pHTemp2000 will directly connect to many commonly used pH, ORP and ISE electrodes through a female BNC connector mounted on its side. Temperature is measured by directly connecting an RTD to the pHTemp2000. Temperature compensation is automatically done internally to the unit.
The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer.
The pHTemp2000 makes data retrieval quick and easy. Simply plug it into an empty USB port and our user-friendly software does the rest.
Manufacturer Specs
| General Specifications | |
| Memory | 131,071/channel |
| Reading Rate | 1 reading every 2 seconds up to 1 reading every 24 hours |
| Baud Rate | 115,200 |
| Battery Life | 1 year battery life at one minute reading rate with display off. 30 days typical with continuous display use. Optional AC adapter available. |
| Material | Black anodized aluminum |
| Dimensions | 4.8 in x 3.3 in x 1.25 in (122 mm x 84 mm x 32 mm) |
| Operating Environment | -5 °C to +50 °C (+23 °F to +122 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Weight | 1.0000 LBS |
| Temperature | |
| Temperature Sensor | 2, 3 or 4 wire 100 Ω Platinum RTD |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.15 °C |
| Probe Temperature Range | -40 °C to +110 °C (-40 °F to +230 °F) |
| pH | |
| pH Range | -2 pH to +16 pH (±1000 mV) |
| pH Resolution | 0.01 pH/0.001 pH |
| pH Accuracy | ±0.01 pH |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 230 F (110 C) |
| Min Temperature | -40 F |
| Power Source | Battery |
| Battery Life | 8760 HR |
| Input Source | External Probe |
| Accuracy | ±0.15 ºC @ 25 ºC ambient (±0.015 Ω) |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Interfaces I/O | USB |
| Storage | Internal Memory |
| Product Weight | 1 LBS |
| Product Height | 1.25 IN |
| Product Length | 4.8 IN |
| Product Width | 3.3 IN |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
