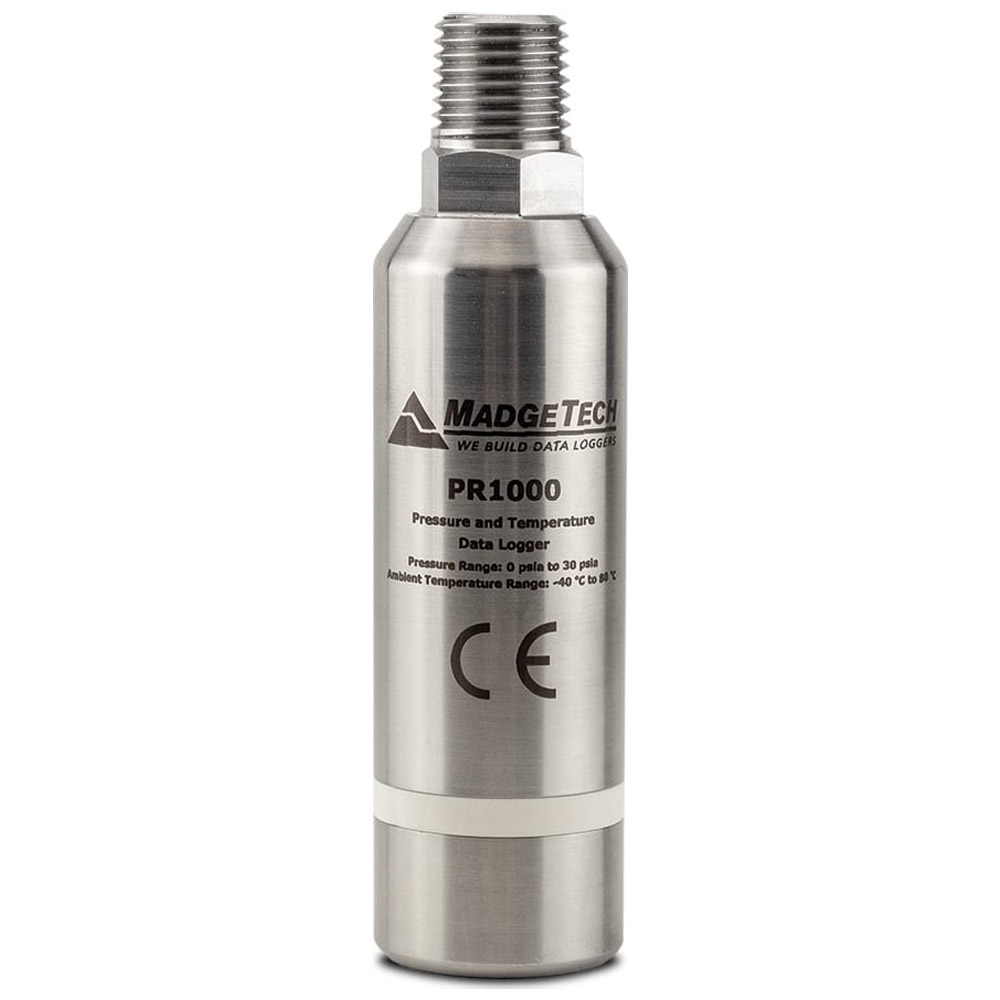

Madgetech PR1000-500-PSIA – Pressure and Temperature Data Logger, 0-500 PSIA Temperature
- Pressure and Transient Pressure Data Logger
- 0-500 PSIA Temperature
- Compact
- Submersible
- ¼ Inch NPT Fitting
The PR1000 is a temperature, pressure, and transient pressure data logger. This device is fully submersible and available in 10 models ranging from 30 to 5000 PSI.
Standing just under 4 inches tall and an inch in diameter, the PR1000 is compact for easy placement and features a ¼ inch NPT fitting for quick connection. The PR1000 can store more than 1.3 million readings with an internal temperature sensor that provides measurements from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±2.0 °C.
The PR1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Note: The PR1000 replaces the PRTemp1000 and PRTRans1000.
Applications
- Pneumatics
- Process control systems
- Gas compressors
- Natural gas production
- Lubrication systems
- Chemical processing
- Pulp and paper processing
- Medical instrumentation
- Environmental studies
- Wastewater treatment
- HVAC
- Oil & gas industries
Manufacturer Specs
| General Specifications | |
| Memory | 1,396,736 readings |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours Transient = 128Hz |
| Battery Life | 1 year In Transient Mode: 10 Days (at 128Hz) |
| Material | 316 Stainless Steel/Radel |
| Dimensions | 3.6 in x 0.97 in dia. (91.3 mm x 24.6 mm dia.) |
| Submersible | Yes |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE |
| Temperature | |
| Temperature Sensor | Internal semiconductor |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 1.0 °C |
| Temperature Calibrated Accuracy | ±2.0 °C |
| Pressure | |
| Pressure Range | 0 to 30, 100, 300, 500 PSIA/PSIG; 1000 and 5000 PSIA |
| Pressure Resolution | Range: Resolution 0 to 30 PSIA/PSIG: 0.0005 PSI 100 PSIA/PSIG: 0.002 PSI 300 PSIA/PSIG: 0.005 PSI 500 PSIA/PSIG: 0.01 PSI 1000 PSIA: 0.02 PSI 5000 PSIA: 0.1 PSI |
| Pressure Calibrated Accuracy | Range: Accuracy 0 to 30 PSIA/PSIG: ±0.6 PSI 100 PSIA/PSIG: ±2 PSI 300 PSIA/PSIG: ±6 PSI 500 PSIA/PSIG: ±10 PSI 1000 PSIA: ±20 PSI 5000 PSIA: ±100 PSI |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Weight | 0.62 LBS |
