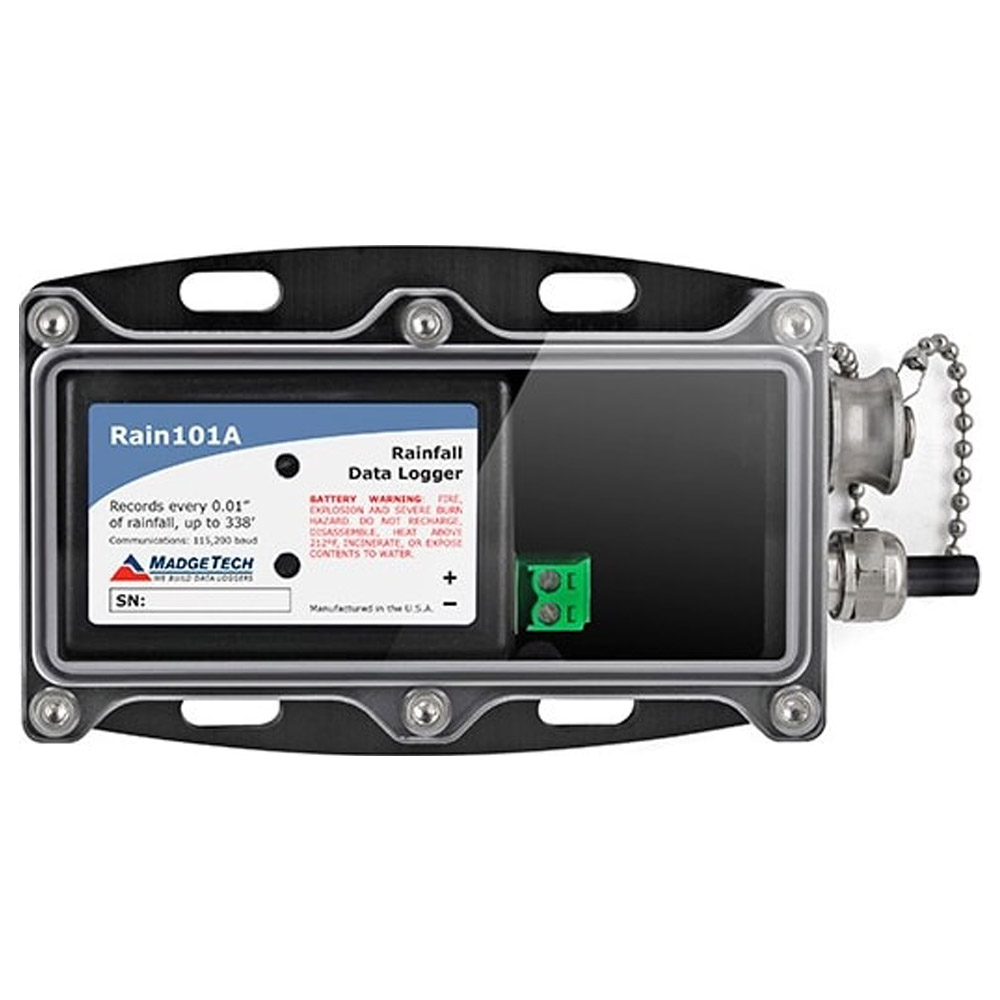

Madgetech Rain101A Rainfall Datalogger
 |
|
The Rain101A is a complete system to accurately measure and record rainfall over long periods of time. It comes complete with an Event101A data logger, weatherproof enclosure, tipping bucket rain gauge, 20 ft of cable and the IFC200 interface cable and software package.
It can record up to 6 in of rainfall every hour and 131 in of rainfall total. The Rain101A only records to memory when rainfall is present, maximizing the amount of time the system can record. Using the logger’s built-in Engineering Units, the data can be offloaded and displayed in user-specified units (eg. inches, centimeters). The software can “totalize” the rain bucket tips, allowing easy viewing of the accumulated rainfall over the time period of interest.
The Rain101A features a 10 year battery life, 4 Hz reading rate, a multiple start/stop function, ultra-high speed download capability, 406,323 reading storage capacity, optional memory wrap, battery life indicator, optional password protection and more.
Manufacturer Specs
| General Specifications | |
| Memory | 406,323 samples, 338 ft of rainfall |
| Reading Rate | 4 Hz to 1 every 24 hours |
| Baud Rate | 115,200 |
| Push-Button Start | Yes |
| Battery Life | 10 years Typical |
| Material | Funnel: anodized aluminum; base, body and bracket Tipping Bucket: PVC Data Logger: ABS Plastic |
| Dimensions | Rain Gauge: 8.4″ D x 15.0″ H (213 mm x 381 mm) Weatherproof Enclosure: 3.5 in x 2.9 in x 1.1 in (87 mm x 73 mm x 27 mm) |
| Operating Environment | -20 °C to +80 °C (-4 °F to +176 °F), 0 %RH to 100 %RH |
| Required Interface Package | IFC200 |
| Weight | 8.6938 LBS |
| Rainfall | |
| Rainfall Accuracy | ±4 % over range of 1 in to 6 in per hour |
| Orfice | 8 in dia. (204 mm dia.) |
| Reed Switch Contact rating | 3 W, 28 VAC |
| Rainfall per Bucket Tip | (3) 1/4 in dia. holes on 9.5 in dia. circle |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Power Source | Battery |
| Battery Life | 87600 HR |
| Software Included | Yes |
| RH | 100 % |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| IP Rating | IP65 |
| Product Weight | 10 LBS |
| Data Logging | Yes |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
