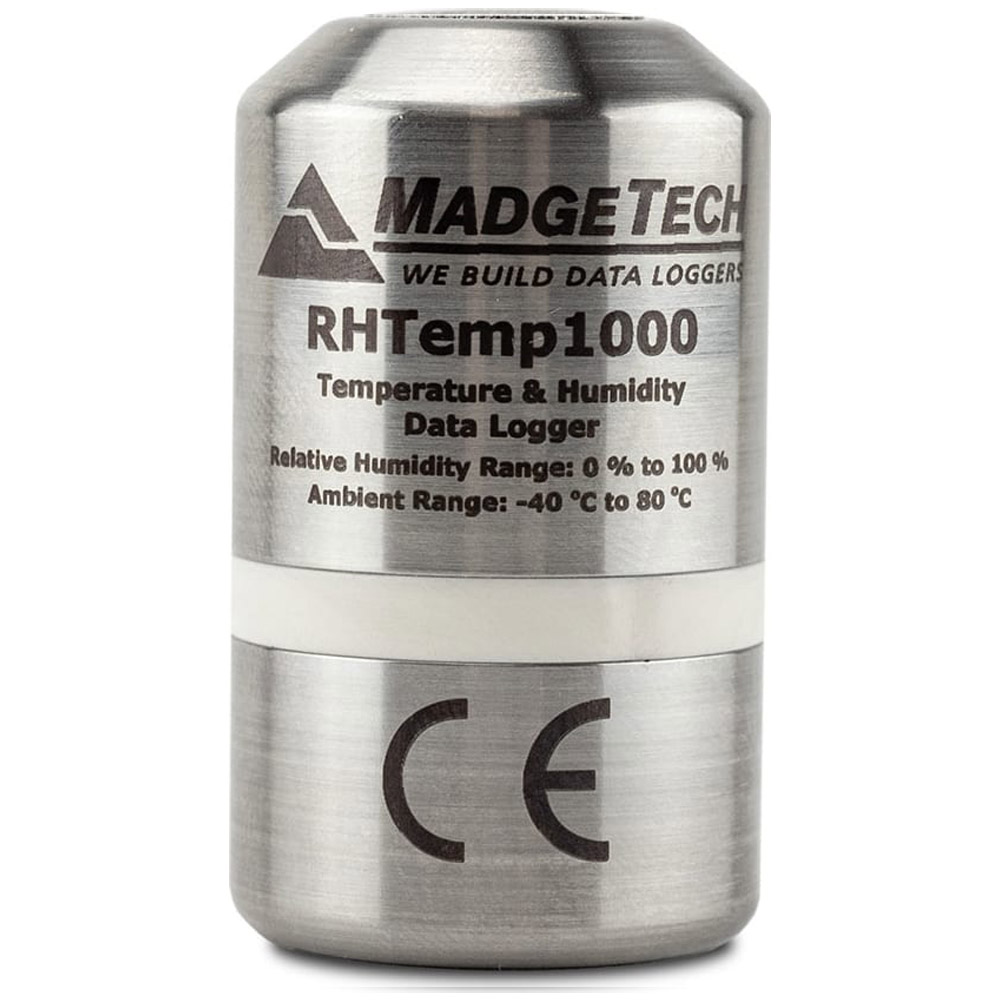

Madgetech RHTemp1000-KR – Stand-Alone Humidity and Temperature Data Logger with Key Ring End Cap
- 316 Stainless steel enclosure with key ring end cap
- Measures and records temperatures from -40 °C to +80 °C (-40 °F to +176 °F)
- Able to be programmed to start up to 24 months in advance
- Compatible with the latest MadgeTech 4 Software
- 32,768 readings (all channels enabled) memory capacity
The RHTemp1000 is a compact, humidity and temperature data logger, ideal for use in harsh environments.
This device measures and records temperatures from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C. The RHTemp1000 can store up to 32,768 times and date stamped readings and is able to be programmed to start up to 24 months in advance.
The RHTemp1000 is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Manufacturer Specs
| Memory | 32,768 readings (all channels enabled) |
| Reading Rate | 1 reading every second up to 1 reading every 24 hours |
| Battery Life | 2 years typical at 25 °C, 15 minute reading intervals |
| Material | 316 Stainless Steel/Radel |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH (non-condensing) |
| Required Interface Package | IFC400 or IFC406 |
| Temperature | |
| Temperature Sensor | Resistance Temperature Detector (RTD) |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Response Time in Air | t63 – 8 minutes to 63% of change t90 – 68 minutes to 90% of change |
| Temperature Calibrated Accuracy | ±0.5 °C (0 °C to +55 °C) |
| Humidity | |
| Humidity Sensor | Capacitive Polymer |
| Humidity Range | 0 %RH to 100 %RH (non-condensing) |
| Humidity Resolution | 0.1 %RH |
| Humidity Response Time in Air | t90 – 2 minutes to 90% of change |
| Humidity Calibrated Accuracy | ±3 %RH maximum |
| Humidity Specified Accuracy Range | 25 %RH to 75 %RH +20 °C to +40 °C Hysteresis Error 1 % Typical, 3% Maximum. |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Humidity Dataloggers Template |
|
|---|---|
| Max Temperature | 176 F (80 C) |
| Min Temperature | -40 F |
| Power Source | Battery |
| Battery Life | 5 YEARS (43800 HR) |
| Accuracy | ±0.5 °C (±0.9 °F) from 0 °C to 55 °C (32 °F to 131 °F) |
| LCD Screen | No |
| Data Output Format | excel |
| Dew Point | No |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Product Weight | 0.15 LBS |
| Product Height | 1.67 IN |
| Product Length | 0.97 IN |
| Shipping Weight | 0.17 LBS |
| Battery Type | Li-ion |
| Country of Origin | United States |
