Descripción

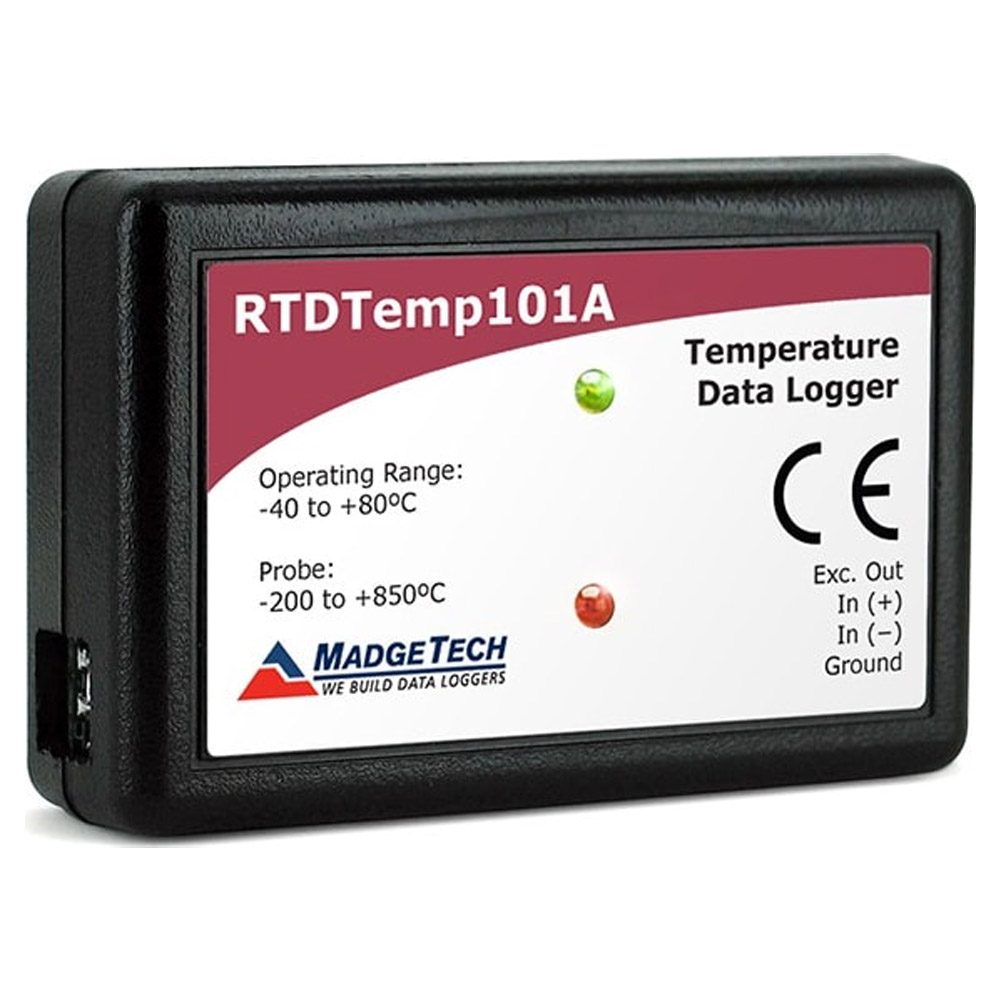

Madgetech RTDTemp101A – RTD based Temperature Recorder
- 10 Year Battery Life
- ±0.05 °C (±0.09 °F) Accuracy
- Multiple Start/Stop Function
- Ultra High Speed Download
- 1,340,000 Reading Storage Capacity
Don’t be fooled by the small size, the RTDTemp101A temperature data logger offers a wealth of features with a compact form factor about the size of a matchbox. When used with an external RTD probe, this data logger measures temperatures from -200 °C to 850 °C. The low power design of this data logger provides a battery life of up to 10 years but still delivers ultra-fast download speeds. The RTDTemp101A can store over a million readings and offers a software configurable memory wrap option. In addition to having a pushbutton start stop, the device also can be programmed to a delay start up to 18 months in advance.
Using the MadgeTech Data Logger Software, data from the RTDTemp101A is easily downloaded, displayed and formatted for reports or the data can be exported to Excel for further presentation customization. This versatile device can be used for a wide variety of applications such as calibration chamber monitoring, HVAC applications, environmental studies or precision temperature recording for medical and pharmaceutical applications.
Product Notes
LEDs
- Green LED blinks: 10 seconds to indicate logging and 15 seconds to indicate delay start mode.
- Red LED blinks: 10 seconds to indicate low battery and/or memory and 1 second to indicate an alarm condition.
Password Protection
An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password
Multiple Start/Stop Mode Activation
- To start device: Press and hold the pushbutton for 5 seconds, the green LED will flash during this time. The device has started logging.
- To stop the device: Press and hold the pushbutton for 5 seconds, the red LED will flash during this time. The device has stopped logging.
Alarm Settings
Programmable high and low limits; alarm is activated when temperature reaches or exceeds set limits.
Manufacturer Specs
| General Specifications | |
| Memory | 1,340,000 readings; software configurable memory wrap 670,000 readings in multiple start/stop mode |
| Reading Rate | 1 reading every second to 1 reading every 24 hours |
| Alarm | Yes |
| Baud Rate | 115,200 |
| Channels | 1 |
| LED Indicators | Red & Green |
| Push-Button Start | Yes |
| Battery Life | 10 years typical at a 15 minute reading rate |
| Material | ABS plastic |
| Dimensions | 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Weight | 0.0625 LBS |
| Temperature | |
| Temperature Sensor | External 100 Ω RTD (Sold Separately) |
| Temperature Range | 18 Ω to 400 Ω, -200 °C to +850 °C (-328 °F to +1562 °F) (Probe Dependent) |
| Temperature Resolution | 0.0001 Ω, 0.01 °C (0.018 °F) (Probe Dependent) |
| Temperature Calibrated Accuracy | ±0.015 Ω, ±0.05 °C (±0.09 °F) (Probe Dependent)
Calibrated Accuracy Range: *18 Ω to 200 Ω, -200 °C to +265 °C (-328 °F to +509 °F) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | RTD |
| Max Temperature | 1562 F (850 C) |
| Min Temperature | -328 F |
| Power Source | Battery |
| Battery Life | 87600 HR |
| LCD Screen | No |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Product Weight | 0.05 LBS |
| Product Height | 0.06 IN |
| Product Length | 1.4 IN |
| Product Width | 2.2 IN |
| Calibration Included | NIST Calibration |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
