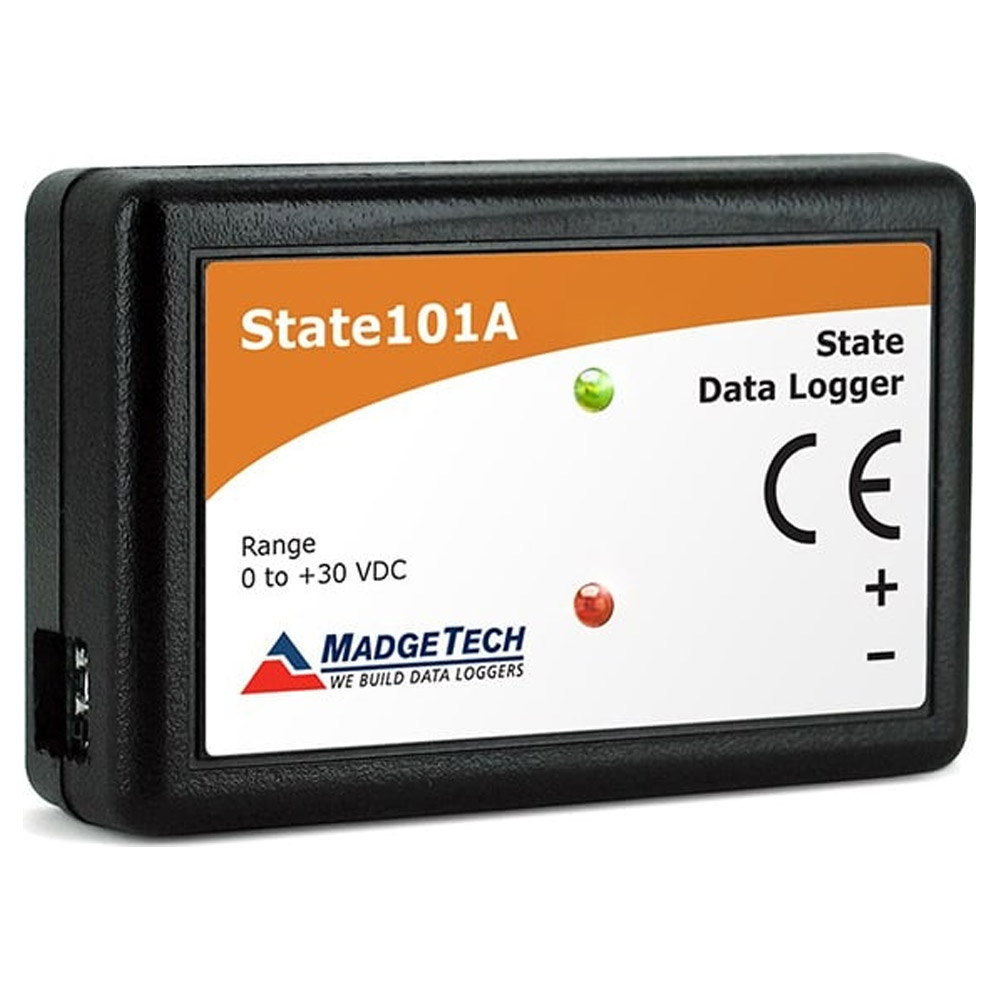

Madgetech State101A
- 10-Year Battery Life
- 4 Hz Second Reading Rate
- Multiple Start/Stop Function
- Ultra High-Speed Download
- 838,041 Reading Storage Capacity
State Recorder, 4 Hz Second Reading Rate
The State101A is a compact, state data logger that monitors and records the occurrence, duration, and status of predetermined events by measuring changes in voltage.
With a user-programmable reading rate of up to 4 Hz, 10-year battery life, and the ability to store up to 838,041 readings, the State101A is ideal for long-term studies. Typically connected to a relay or switch, this device features a removable screw terminal block to easily disconnect and retrieve the logger for data download without disrupting wiring connectivity.
The State101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data are provided for analysis and can be viewed as customizable engineering units.
Manufacturer Specs
| General Specifications | |
| Memory | 406,323 readings; software configurable memory wrap |
| Reading Rate | 4 Hz to 1 every 24 hours |
| Baud Rate | 115,200 |
| Channels | 1 |
| LED Indicators | Red and Green |
| Battery Life | 10 years typical, dependent upon frequency and duty cycle |
| Material | ABS Plastic |
| Dimensions | 1.4 in x 2.2 in x 0.6 in (36 mm x 56 mm x 16 mm) |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing |
| Required Interface Package | IFC200 |
| Approvals | CE |
| Weight | 0.0625 LBS |
| State | |
| State Input Range | 0 to 30 V |
| State Input Low | <0.4 V |
| State Input High | >2.8 V |
| State Internal Weak Pull-up | <60 μA |
| State Resolution | 4 Hz (reading rate selectable in software) |
Tech Specs
Dataloggers / Data Acquisition/Voltage Datalogger Template |
|
|---|---|
| Power Source | Battery |
| Battery Life | 87600 HR |
| LCD Screen | No |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Product Weight | 0.05 LBS |
| Product Height | 0.6 IN |
| Product Length | 1.4 IN |
| Product Width | 2.2 IN |
| Power Supply Voltage | Battery Powered |
