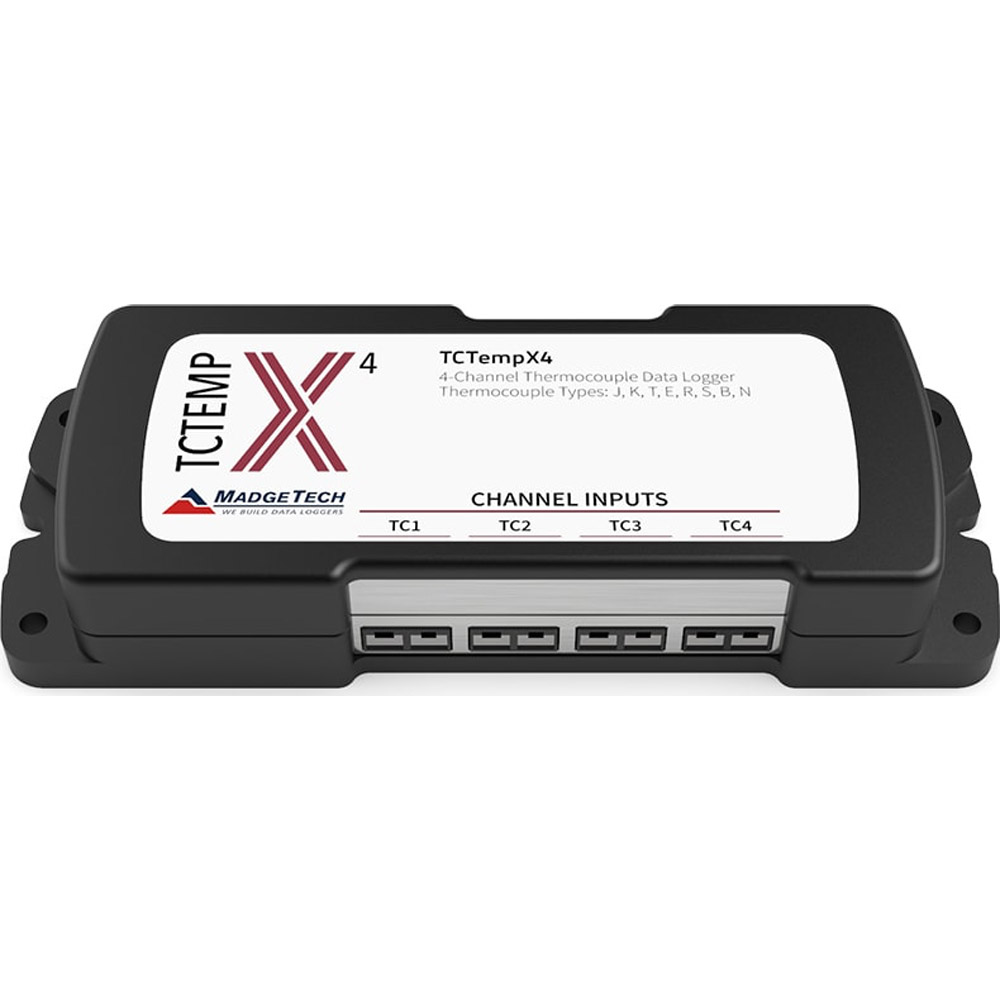

Madgetech TCTempX4 – 4-Channel Thermocouple Temperature Data Loggers
- 4-channel: 524,032 readings per channel
- Accepts Thermocouple Types J, K, T, E, R, S, B, N
- External Power or User Replaceable Battery
- Pushbutton or Programmable Start
The TCTempX Series includes 4, 8, 12 and 16-channel thermocouple-based temperature data loggers with a reading rate of up to 4 Hz, ideal for a variety of applications, whether it is remote temperature monitoring or multiple points in a central location.
This device simultaneously measures and records up to 2,096,128 readings, and users can disable channels to maximize memory capacity. For easy identification, each channel can be named with up to a ten-digit title.
In addition, the TCTempX Series features individual cold junction compensation for each channel providing increased accuracy and response time, and if a probe is removed or severed during logging, the software automatically annotates the data.
The TCTempX Series is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
MadgeTech 4 Software Features
Graph View
- Multiple graph overlay
- Statistics
- Digital calibration
- Zoom in/ zoom out
- Lethality equations (F0, PU)
- Mean Kinetic Temperature
- Full time zone support
- Data annotation
- Min./Max./Average lines
- Summary view
Cooling Flags
Export to Excel
Tabular Data View
Automation
Manufacturer Specs
| General Specifications | |
| Memory | 4-channel: 524,032 readings per channel |
| Reading Rate | 4 Hz up to 1 reading every 24 hours |
| Cold Junction Compensation | Automatic, based on internal channel |
| Channels | 4, 8, 12, 16 |
| Battery Life | 18 months typical |
| Material | Black anodized aluminum |
| Dimensions | 16-channel: 2.70 in x 7.25 in x 2.14 in (65.6 mm x 184.2 mm x 54.4 mm) |
| Operating Environment | -20 ºC to +60 ºC (-4 ºF to +140 ºF), 0 %RH to 95 %RH non-condensing |
| Approvals | CE |
| Temperature | |
| Internal Channel Temperature Resolution | 0.01 °C (0.018 °F) |
| Remote Channel Temperature Sensor | Thermocouple Types J, K, T, E, R, S, B, N |
| Remote Channel Temperature Range | Thermocouple Dependent |
| Remote Channel Temperature Resolution | Thermocouple Dependent |
| Remote Channel Temperature Calibrated Accuracy | Thermocouple Dependent |
