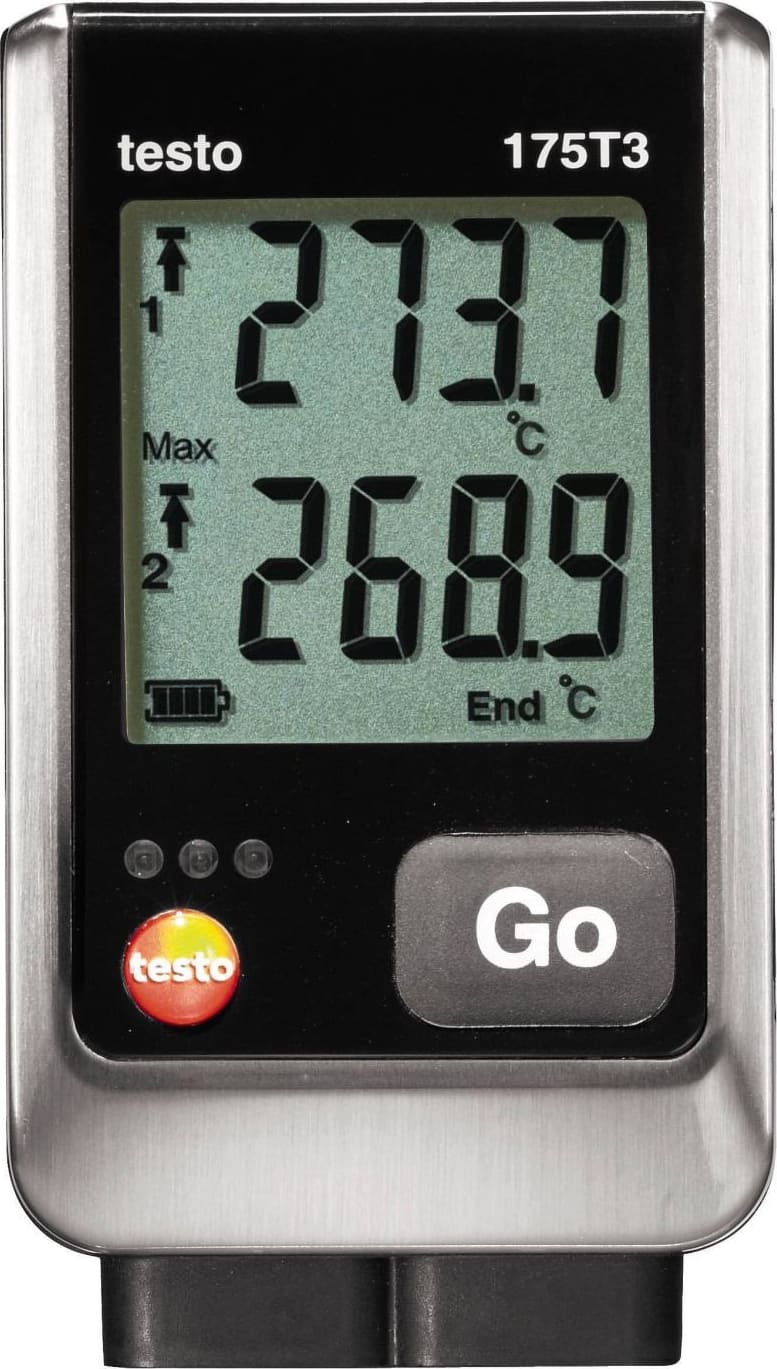

Testo 175T3 – Temperature Data Logger (Part Number 0572 1753)
- Dual external thermocouple connections (1 Type K, 1 Type T) provide reliable temperature monitoring
- Ideal for continuous monitoring of ambient and product temperatures
- Customizable settings – will alert when user defined thresholds have been exceeded
- Data transfer possible using the USB port, or SD card (optional)
- Easy to read large display that shows current reading and exceeded measurement limits
The testo 175T3 temperature data logger features a large display and alarm indication that makes it ideal for continuous monitoring of temperatures. The 175T3 temperature measurement logger has dual external thermocouple connections, 1 Type K and 1 Type T, which allows for simultaneous measurements using a wide variety of probes. Creation of Excel Spreadsheets, PDFs, and data analysis are all easily achieved with the free, downloadable ComSoft software.
Please note: The testo 175T3 temperature measurement logger requires an interface to use the free data logger software. One interface can be used for multiple instruments.
Application example:
Monitoring the flow and return temperature of heating systems
The heating period begins in autumn and with it complaints from tenants that their apartments cannot be heated to the extent they would like. The flow and return temperature of individual radiators, for example, can be specifically monitored with the aid of flexible external pipe wrap probes, which enable causes to be identified and remedied.
Manufacturer Specs
| Temperature – Type K TC | |
| Measuring range | -58° to 1832 °F / -50 to +1000 °C |
| Accuracy | ±0.9 °F (-58° to 158 °F) / ±0.5 °C (-50 to +70 °C) ±0.7 % of mv (158.2° to 1832 °F) / ±0.7 % of mv (+70.1 to +1000 °C) |
| Resolution | 0.1 °F / 0.1 °C |
| Temperature – TC Type T (Cu-CuNi) | |
| Measuring range | -58 to +752 °F / -50 to +400 °C |
| Accuracy | ±0.9 °F (-58° to 158 °F) / ±0.5 °C (-50 to +70 °C) ±0.7 % of mv (158.2° to 1832 °F) / ±0.7 % of mv (70.1 to +1000 °C) |
| Resolution | 0.1 °F / 0.1 °C |
| General technical data | |
| Dimensions | 4 x 2 x 1 in. / 89 x 53 x 27 mm |
| Operating temperature | -4° to 131 °F / -20 to +55 °C |
| Protection class | IP65 |
| Channels | 2 external |
| Battery type | 3 x AIMn type AAA or Energizer |
| Battery life | 3 years at 15 min. meas. rate |
| Memory | 1,000,000 measuring values |
| Storage temperature | -4° to 131 °F / -20 to +55 °C |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | K, T |
| Max Temperature | 1832 F (1000 C) |
| Min Temperature | -58 F |
| Battery Life | 3 YEARS (26280 HR) |
| Input Source | External Probe |
| # Data Points | 1000000000 |
| # Inputs/Channels | 2 |
| SAMPLE RATE/Intervals | 10 sec to 24 hours |
| Accuracy | +/-0.9 F (-58 to 158) +/-0.7% of reading (158 to 1832) |
| Software Included | No |
Test Equipment General Attributes |
|
| Unique Features | Parallel monitoring and recording of two temperature measurement points or locations. Easy monitoring and documentation of differential temperature measurements, such as flow/return temps in a heating system |
| Warranty | 2 YEARS |
| Warranty Details | 2 years from time of purchase |
| Storage | SD Card |
| IP Rating | IP65 |
| Product Weight | 3 LBS |
| Product Height | 1.0 IN |
| Product Length | 3.5 IN |
| Product Width | 2.0 IN |
| Shipping Weight | 5 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 90251920000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 3.0 IN |
| Shipping Length | 5.5 IN |
| Shipping Width | 4.0 IN |
