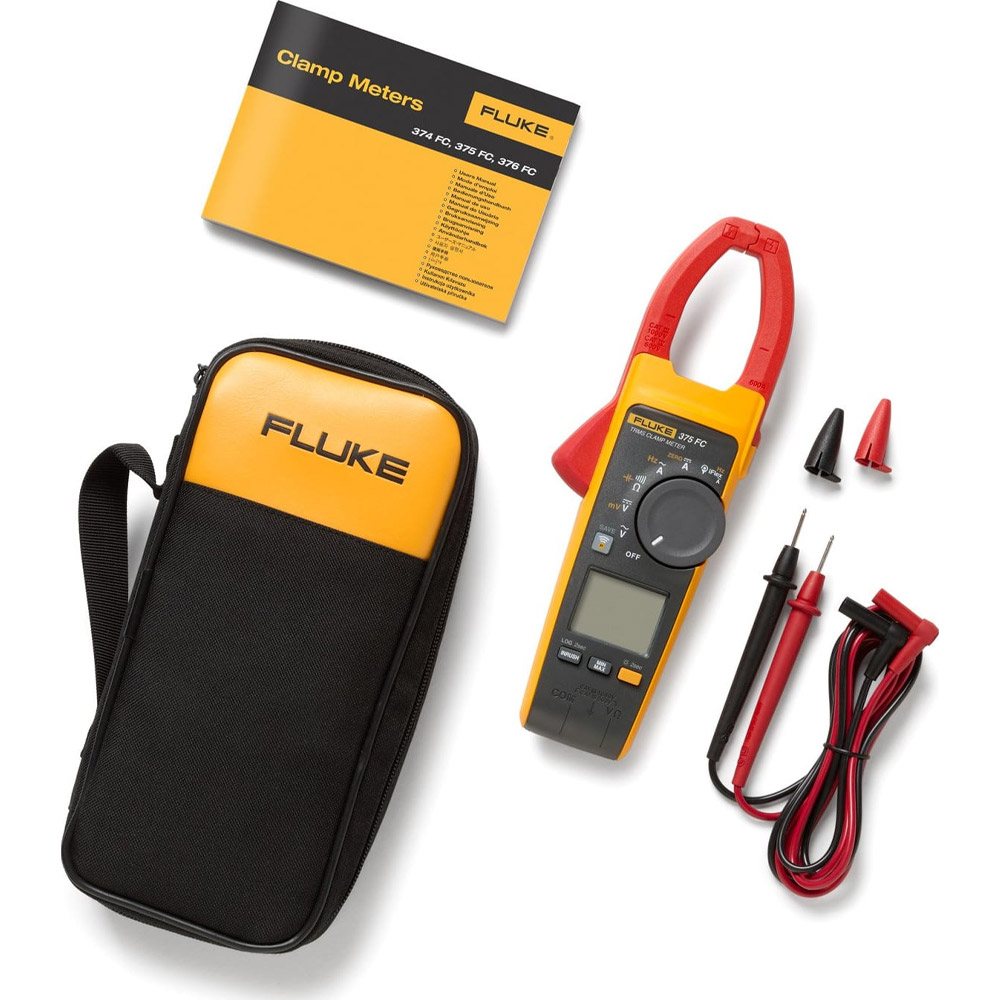

Fluke 375 FC 600A AC/DC TRMS Wireless Clamp Meter

- Connect your meter to your smartphone with Fluke Connect Measurements
- Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
- Record results directly to your phone and the Cloud
The Fluke 375 FC is a high-performance clamp meter with wireless communication, measures very low voltage and very high resistance, plus a VFD low-pass filter for accurate motor drive measurements.
For years, Fluke has built a reputation for producing the most reliable, rugged, and innovative clamp meters in the world. The new Fluke 370 Series FC is no exception; they are precise, tough, and easy to use. These clamp meters are best-in-class, and make a perfect addition to the Fluke family of clamps.
Developed for commercial and industrial applications, the 375 FC Clamp Meters combine functionality with form factor to create a powerful troubleshooting clamp. The new Fluke 370 Series FC are the only clamp meters in the market to offer a flexible current probe, logging, and safe remote measurements, all in one unit.
Fluke 370 FC Series True-rms Clamp Meters
The new Fluke 375 FC offers advanced troubleshooting performance. The iFlex ® flexible current probe allows easy connections to wires in tight spaces. In addition, all three clamps are now part of the Fluke Connect® family of wireless test tools. Now you can:
- Log and trend measurements to pinpoint intermittent faults
- Transmit results wirelessly via Fluke Connect ® Measurements app
- Create and send reports right from the field
- Capture measurements outside the arc flash zone with Bluetooth connectivity to your Apple or Android devices
Product highlights
- Connect your meter to your smartphone using Fluke Connect Measurements app to increase the troubleshooting power of your clamp
- Read measurements on your phone at a safe distance, wearing less PPE while your meter takes all the risks
- Record results directly to your phone and the Fluke Cloud™
- Capture intermittent faults while performing other tasks using the logging capabilities of the Fluke 376 FC and 375 FC
- Create and share reports from the field via email, or converse in real time with ShareLive™ video calls
- iFlex flexible current probe expands the measurement range to 2500 A ac; provides access to large conductors in tight spaces (included with 376 FC; compatible with 375 FC and 374 FC)
- TPAK magnetic hanging strap (included with 376 FC; compatible with 375 FC and 374 FC) allows you to conveniently hang the meter while using the probes
- Integrated VFD low pass filter (Fluke 376 FC and 375 FC) for accurate motor drive measurements
- Proprietary in-rush measurement technology to filter out noise and capture motor starting current exactly as the circuit protection sees it
- CAT IV 600 V, CAT III 1000 V safety rating
- Three-year warranty
Manufacturer Specs
| Specifications Fluke 370 Series FC True-rms Clamp Meters | |||
| Three new models | Fluke 376 FC | Fluke 375 FC | Fluke 374 FC |
| CAT rating | CAT III 1000 V, CAT IV 600 V | ||
| A ac range | 999.9 A with clamp jaws 2500 A with iFlex ® flexible current clamp | 600 A with clamp jaws 2500 A with optional iFlex ® flexible current clamp | |
| A dc range | 999.9 A | 600 A | |
| Best resolution | 0.1 A | ||
| V ac range | 1000 V | ||
| V dc range | 1000 V | ||
| mV dc range | 500 mV | ||
| Ohms range | 60.00 kΩ | 6,000 Ω | |
| Frequency | 5-500.0 Hz | ||
| Capacitance | 1 µF-1,000 µF | ||
| Auto shutoff | • | • | • |
| True-rms | • | • | • |
| Display hold | • | • | • |
| Inrush measurements | • | • | • |
| Backlight | • | • | • |
| DC zero | • | • | • |
| Min/max | • | • | • |
| VFD low pass filter | • | • | |
| Logging | • | • | |
| iFlex ® flexible current clamp | Included | Optional | |
| Fluke Connect ® compatible | • | • | • |
| TPAK™ magnetic hanging strap | Included | Optional | |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 600 A |
| Maximum Current DC | 600 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 34 MM (1.34 IN) |
| Resistance | Yes |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | Yes |
Test Equipment General Attributes |
|
| Unique Features | Transmit results wirelessly via Fluke Connect |
| Warranty | 3 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | Bluetooth |
| IP Rating | IP30 |
| Product Weight | 410 GRAMS (0.9039 LBS) |
| Product Height | 45 MM (1.77 IN) |
| Product Length | 249 MM (9.80 IN) |
| Product Width | 85 MM (3.35 IN) |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030320000 |
| ECCN Number | 3A992 |
| Calibration Included | None |
| CA Residents | Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Singapore |
