The NEW standard for rugged.

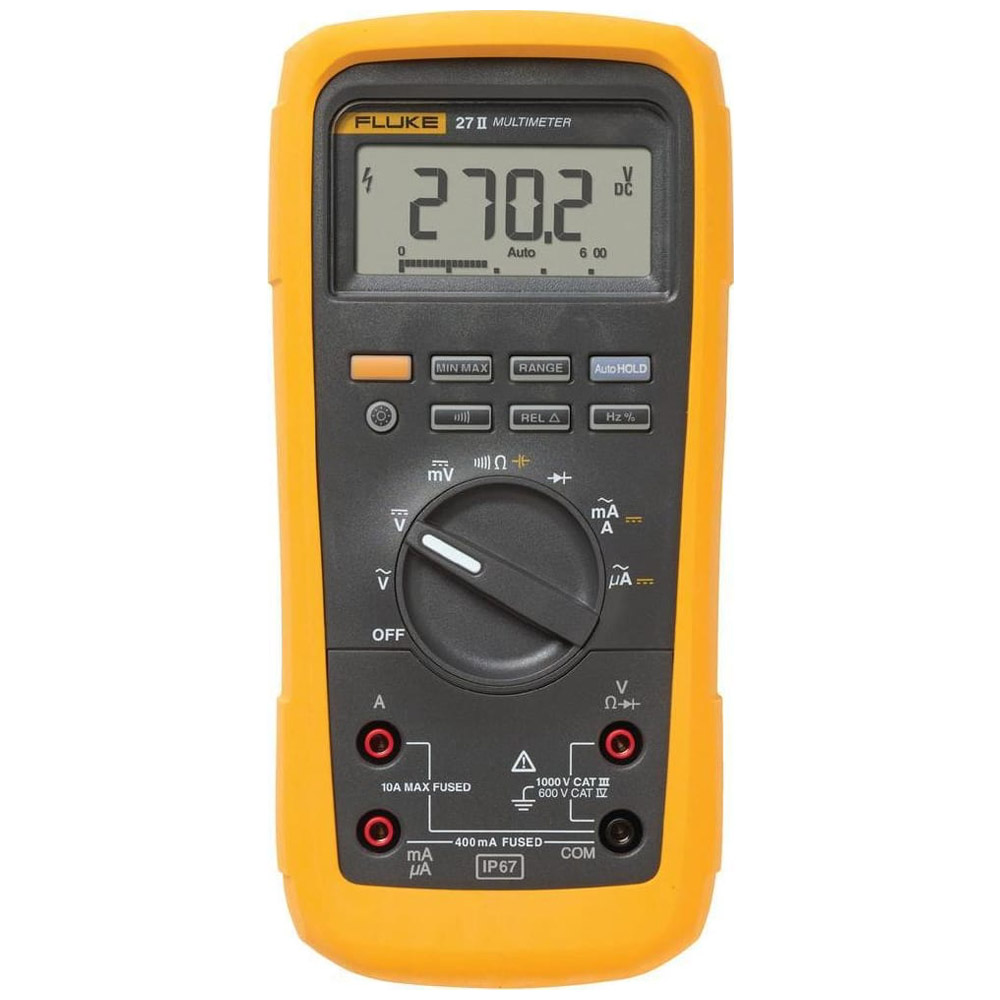

The NEW Fluke 27 II digital multimeters define a new standard for operating in harsh conditions with the features and accuracy to troubleshoot most electrical problems. The Fluke 27 II has an IP 67 (waterproof and dustproof) rating, MSHA approvals, extended operating temperature range of -15 °C to +55 °C (5 °F to 131 °F, -40 °C for up to 20 minutes) and 95 % humidity, and have been designed and tested to withstand a 3 m (10 ft) drop.
Why the Fluke 27 II?
- Addresses customers who need a heavy duty waterproof and dustproof Digital Multimeter
- Brings the old Fluke 27 up to date with a modern look, feel and feature set to match
- Improved feature set, relative to old 27, expands the market by attracting industrial customers who work in harsh environments
- Extended operating temperature, usable to -40C
- Two year calibration cycle
- Measure up to 1000 V ac and dc
- Measure up to 10 A (20 A for 30 seconds)
- 10,000 µF capacitance range
- Frequency to 200 kHz
- Resistance, continuity and diode test
- Min/Max and average recording to capture variations automatically
- Extended ac voltage bandwidth: 40 Hz to 30 kHz
Manufacturer Specs
| Average responding | |
| Count | 6000 |
| Voltage 1000 V AC/DC |  |
| Resistance 50 Ω | |
| Continuity/Diode | |
| Capacitance 10,000 µF | |
| Frequency 200 kHz | |
| Min/ Max/ Average,Hold, Auto and Manual Range | |
| Safety Rating | CAT III 1000 V CAT IV 600 V |
| IP Rating | IP 67 |
| Warranty | Limited Lifetime |
| Size (H x W x L) with Holster |
6.35 cm x 9.91 cm x 23.24 cm |
| Weight with Holster | 1.54 lb.(698.5 g) |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | No |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 1 V (1000 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 V (1000 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.1 uA (0.00010 mA) |
| Resolution AC Current | 0.01 A (10 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.1 uA (0.00010 mA) |
| Resolution DC Current | 0.01 A (10 mA) |
| Basic Accuracy V DC | 0.1 % +1 |
| # Digit Display | 3.5 |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Wireless Display | Yes |
| Data Hold | Yes |
| Low-Pass Filter | No |
| Duty Cycle % | Vdc and mVdc
Range: 0.0 % to 99.9 % Accuracy: Within ± (0.2 % per kHz + 0.1 %) for rise times < 1 μs |
Test Equipment General Attributes |
|
| Unique Features | •Measure up to 1000 V ac and dc
•Measure up to 10 A (20 A for 30 seconds) •10,000 μF capacitance range •Frequency to 200 kHz •Extended ac voltage bandwidth– 40 Hz to 30 kHz •Resistance, continuity and diode test •Min/Max and average recording to capture variations automatically |
| Warranty | 10 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | Analog Output, Analog Input |
| IP Rating | IP67 |
| Product Weight | 1.14 LBS |
| Product Height | 1.8 IN |
| Product Length | 8.4 IN |
| Product Width | 3.95 IN |
| Shipping Weight | 2.65 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Calibration Included | None |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 5.91 IN |
| UPC | 095969462655 |
| Shipping Length | 12.99 IN |
| Shipping Width | 11.02 IN |
