Descripción

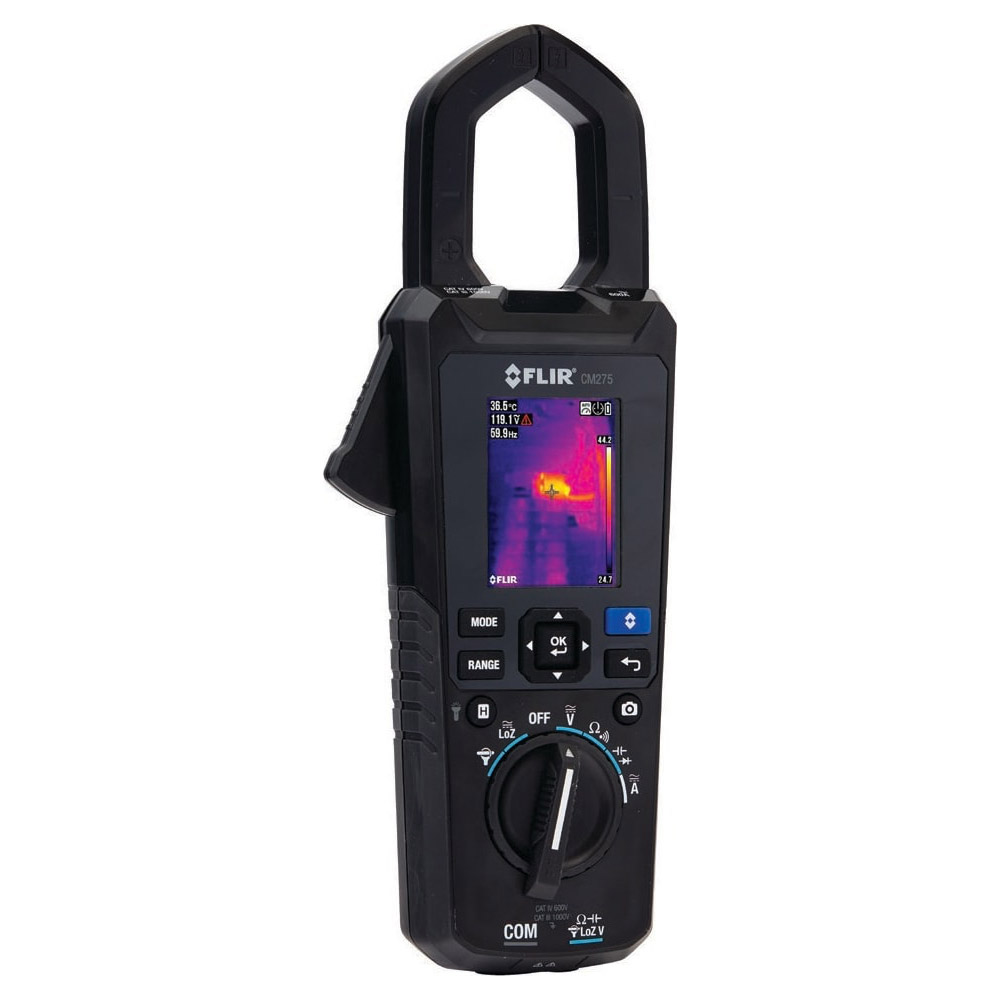

FLIR CM275 True RMS AC/DC Clamp Meter with IGM and Bluetooth, 600A, includes NIST Traceable Certification
- Scan entire targets for electrical issues with up to 160 x 120 thermal resolution
- Safely check for live connections using non-contact temperature measurement
- Pinpoint exact hot spot locations with laser or crosshairs
- Easily reach difficult, dark locations thanks to narrow jaw and built-in worklights
The FLIR CM174 and CM275 clamp meters combine thermal imaging with electrical measurement into powerful inspection, troubleshooting, and diagnostic tools. Through Infrared Guided Measurement (IGMTM), they provide a fast, reliable way to identify hot spots and overloaded circuits from a safe distance. Confirm your findings with the clamp meters wide range of functions plus temperature readings. The FLIR CM275 also provides wireless connectivity for a direct connection to the FLIR InSiteTM professional workflow management application. Whether you choose the FLIR CM174 or CM275 clamp meter, inspecting and servicing plant equipment and facilities will become safer and more efficient.
Manufacturer Specs
| FLIR CM275-NIST Specifications | |
| IR Resolution | 160 x 120 (19,200 pixels) |
| Temperature Sensitivity | 150mK |
| Temperature Accuracy | 3°C or 3% |
| Temperature Range | 14 to 302°F (-10 to 150°C) |
| Field of View | 50.0° x 38° |
| Focus | Fixed |
| Thermal Imaging Palette | Iron, Rainbow, Grayscale |
| Continuity Check | 30Ω |
| Data Logging & Storage | 10 sets of 40K scalar measurements, 100 images |
| Jaw Opening | 35mm (1.38in) 1250 MCM |
| Electrical Specifications | |
| AC/DC Volts | Range: 1000V |
| Accuracy: ±1.0% | |
| AC/DC Amps | Range: 600.0A |
| Accuracy: ±2.0% | |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 600 A |
| Auto Ranging/Manual | Auto Ranging |
Test Equipment General Attributes |
|
| Warranty | 10 YEARS |
| Product Weight | 0.93 LBS |
| Product Height | 9.5 IN |
| Product Length | 1.75 IN |
| Product Width | 3.5 IN |
| Shipping Weight | 1.00 LBS |
| Battery Type | AA |
| Country of Origin | Taiwan |
