Descripción

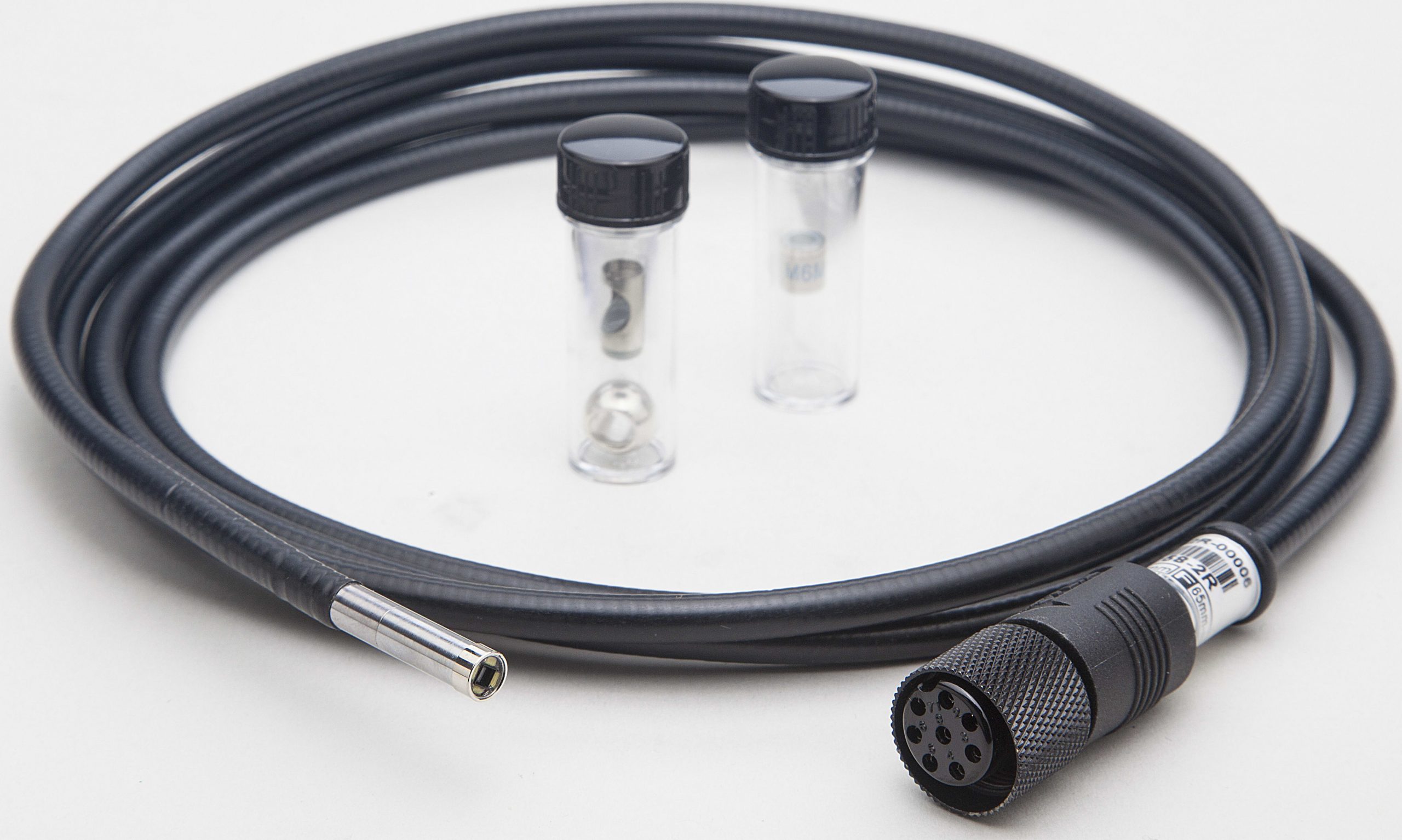

The FLIR Wired VSC58-2R is a small diameter videoscope measuring 5.8mm x 2 Meter in length with a focal length of 65mm to infinity and a 56º FOV.
Manufacturer Specs
| General information | |
|---|---|
| Short description | 5.8 mm (0.23″) camera with 2 m (78″) semi-rigid probe—VGA via long focus |
| Compatible main unit | VS70 |
| Integrated handset | No |
| Wireless capabilities | N/A |
| Compatible wireless handset | With optional VST |
| Compatible detachable cameras | N/A |
| Camera specifications | |
| Articulation | No |
| Diameter | 5.8 mm |
| Resolution | VGA (640 × 480 pixels) |
| Probe length | 1 m |
| Focal length | 65 mm to infinity |
| Field of view | 56° |
| Imaging sensor | CMOS |
| Video format | NTSC |
| Brightness control | Manual with variable options |
| Lamp type | LED |
| Power system | |
| Power requirements | N/A |
| Environmental data | |
| Operating temperature | –10 to 50°C (14–122°F) |
| Operating humidity | 80% maximum |
| Storage temperature | –40 to 80°C (–40 to 176°F) |
| Physical data | |
| Weight | See shipping information |
| Dimensions (H × W × L) | See shipping information |
| Material | PC-ABS, rubber hand grip, nylon strap |
| Color | Gray, black |
| Shipping information | |
| Packaging type | White box with FLIR accessory printing |
| Packaging contents | White box with FLIR accessory graphic, camera, camera attachments: mirror, anti-snag tip, magnet |
| Packaging weight | 0.42 kg |
| Packaging dimensions (H × W × L) | 22 cm × 19 cm × 5 cm |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Weight | 4 LBS |
| Product Height | 22 CM (8.66 IN) |
| Product Length | 5 CM (1.97 IN) |
| Product Width | 19 CM (7.48 IN) |
| Shipping Weight | 4 LBS |
| Country of Origin | Taiwan |
| Shipping Height | 22 CM (8.66 IN) |
| Shipping Length | 5 CM (1.97 IN) |
| Shipping Width | 19 CM (7.48 IN) |
