Descripción

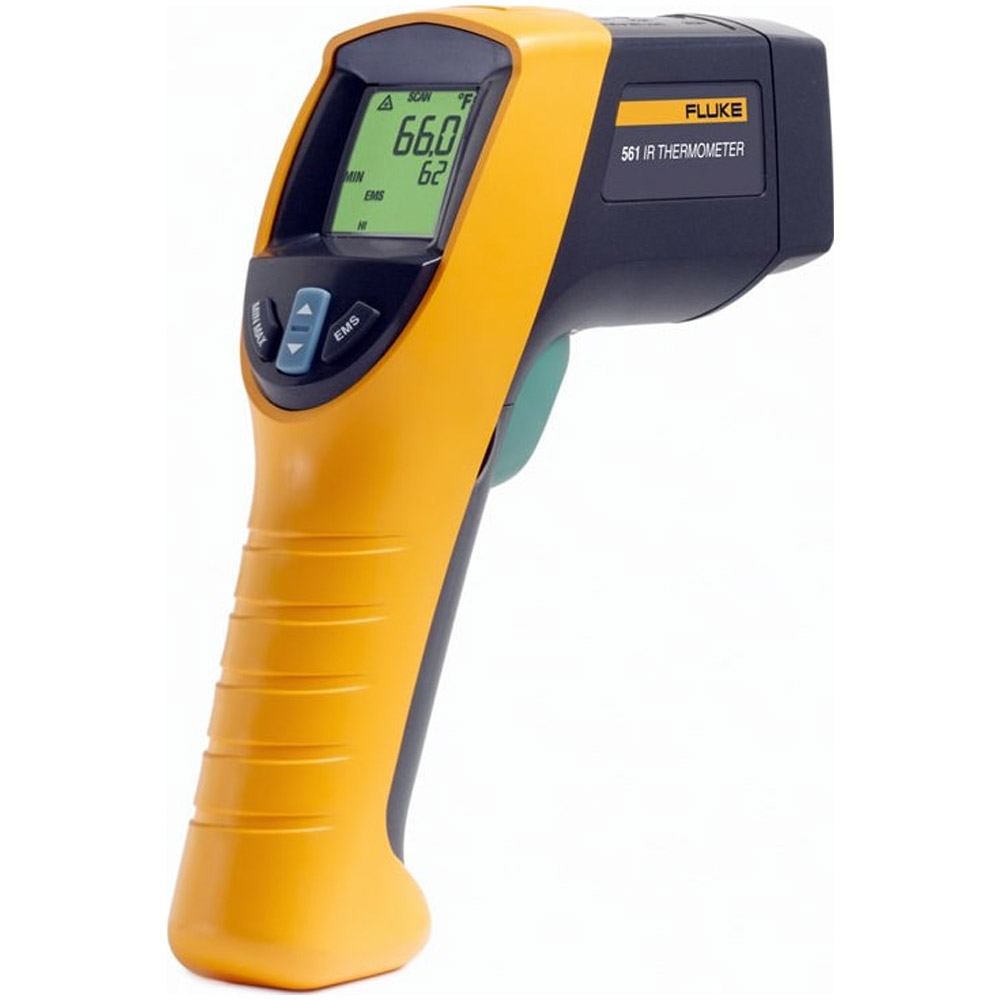

Lighten up your toolbox. The Fluke 561 HVACPro combines the temperature measurement functions that professionals need for most HVAC jobs, all in one tool. It measures both IR and contact temperature, replacing several other test tools. It’s fast, efficient and easy to use, saving you valuable time and effort.
With the Fluke 561, you can take contact and ambient temperatures in the way that’s best for you. Use the IR thermometer to measure hot, moving, electrically energized and hard-to-reach objects instantly. Check motors, insulation, breakers, radiant heating, pipes, corroded connections and wires. Plus, scan ducts from the floor—leave your ladder in the truck. You can use the Fluke 561’s handy Velcro® pipe probe or, to get the most out of your tool investments, plug in any industry-standard K-type mini-connector thermocouple probes you already own.
Manufacturer Specs
| Temperature Range | -40 to 550 °C (-40 to 1022 ° F) |
| Display Resolution | 0.1°C (0.1 °F) of reading |
| D | S (Distance to spot size) : 12:1 |
| Easy Emissivity Selector | Adjustable with three settings: Low (0.3), Medium (0.7). High (0.95) |
| Display Accuracy [Assumes ambient operating temperature of 23°C(73°F) to 25°C(77°F)] |
±1.0 % of reading ±1 % of reading or ±1 °C (±2 °F), whichever is greater below 0 °C/32 °F, ±1 °C (±2 °F) ± 0.1°/1° |
| Response Time | 500 mSec (95 % of reading) |
| Repeatability | ±0.5 % of reading or ±1 °C (±2 °F), whichever is greater |
| Spectral Response | 8 μm to 14 μm |
| Laser Sighting | Single point laser |
| Laser Shutoff | Laser turns off above ambient temperature of 40 °C (104 °F) |
| Laser Power | Class 2(II) operation; Output <1mW, wavelength 630-670 nm |
| Relative Humidity | 10 % to 90 % RH non-condensing, at <30 °C (86 °F) |
| Power | 2 AA batteries (alkaline or NiCD) |
| Battery Life | 12 hours |
| Display Hold | 7 seconds |
| Backlit Display | Yes, LCD with dual temperatures (current and MAX/MIN/DIF/KTC), low battery, F/C indicator, and Scan/Hold options |
| Warranty | 2 years |
| Operating Temperature | 0 °C to 50 °C (32 °F to 120 °F) |
| Storage Temperature | -20 °C to 65 °C (-25 °F to 150 °F) |
| MAX, MIN, DIF Temperatures | Yes |
| Thermocouple Type K Mini Adapter Input | Yes, compatible with industry standard K type probes with mini-connector. |
| Thermocouple Type K Velcro Pipe Probe | Yes, with a temperature range of 0 °C to 100 °C (32 °F to 212 °F) and accuracy of ±2.2 °C (±4 °F) |
| HVAC Measurement Guide | Yes |
Tech Specs
Thermometers/IR Thermometers Template |
|
|---|---|
| IR Temperature Max | 1022 F |
| IR Temperature Min | -40 F |
| Field View Ratio (Spot Ratio) | 12:1 |
| Accuracy | ± 1.0 % of reading or ± 1 °C (± 2 °F), whichever is greater; below 0 °C (32 °F), ± 1 °C (± 2 °F) ± 0.1°/1° |
| Laser Pointer | Yes |
| Backlight | Yes |
| Emissivity Adjustable | Yes |
| Alarm | No |
| Data Hold | Yes |
| Max./Min. | Yes |
| Memory Recall | No |
| Thermocouple Input | Yes |
Test Equipment General Attributes |
|
| Unique Features | IR thermometer for quick measurements up close, or at a distance, without a ladder. Contact thermometry capability, compatible with all standard mini-connector type K thermocouples, preserves your investment in thermocouples. Fabric hook-and-loop fastener pipe probe for superheat and sub-cooling and other contact and ambient measurements. Single-point laser sighting. Temperature range of -40 °C to 550 ° C (-40 °F to 1022 °F) covers most industrial and residential applications. Easy emissivity adjustment (Lo, Med, Hi) for measuring pipes and other shiny materials more accurately. Lightweight (just 12 ounces/340 grams) and portable. Efficient – no need to shut down equipment when making IR measurements. MIN, MAX, and DIF functions help you quickly identify problems. Scan large areas or small objects quickly and efficiently. |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Product Weight | 1.59 LBS |
| Product Height | 11.42 IN |
| Product Length | 7.64 IN |
| Product Width | 2.87 IN |
| Shipping Weight | 2.48 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9025.19.8080 |
| ECCN Number | EAR99 |
| Calibration Included | None |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 11.42 IN |
| UPC | 095969332538 |
| Shipping Length | 7.64 IN |
| Shipping Width | 2.87 IN |
