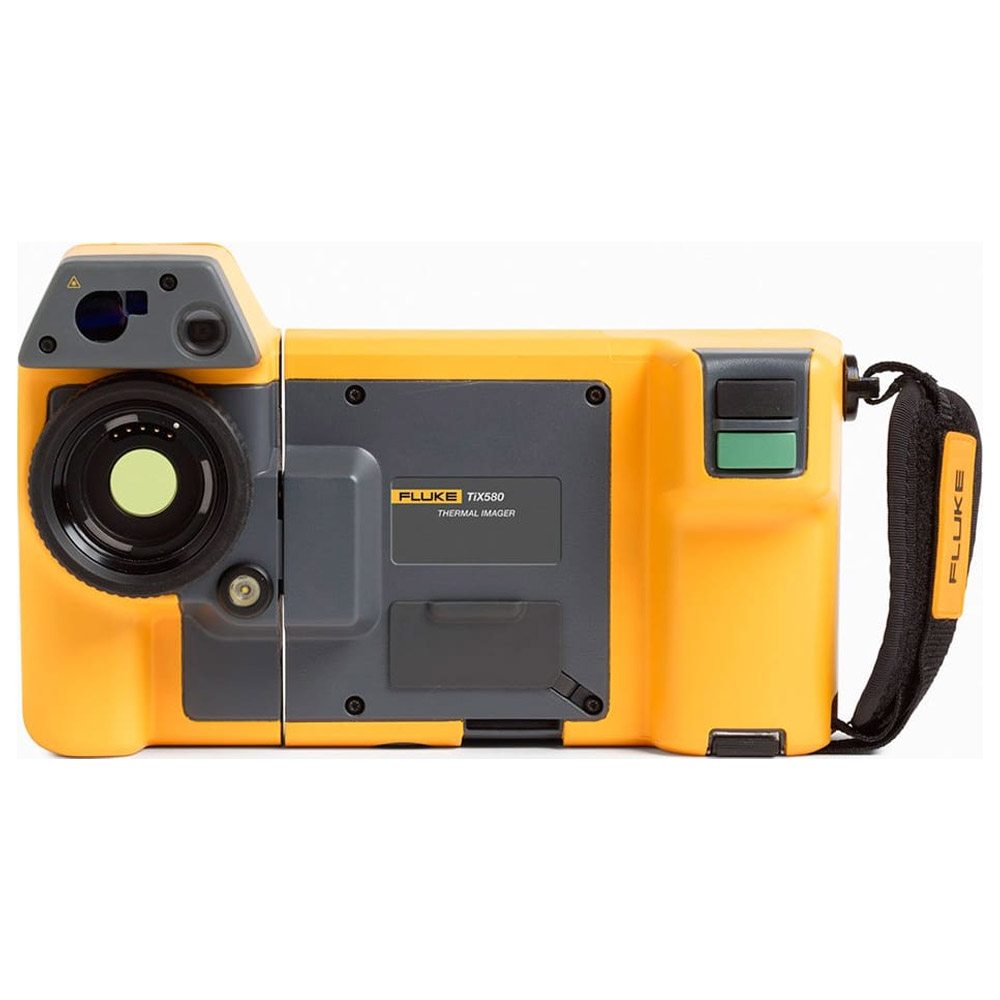

Cámara termográfica Fluke TIX580 60HZ; 640×480; 60 HZ, SR

Fluke TIX580 60HZ – Thermal Imager; 640×480; 60 HZ, SR

Get stunning 640 x 480 image quality and surprising affordability
Premium in-field viewing experience with a 5.7-inch responsive LCD touchscreen – 150% more viewing area than a standard 3.5-inch screen

Ergonomic design and neck strap make long inspection days much easier
Easily maneuver over, under and around objects with the 240° rotating screen/lens while viewing the screen at a comfortable angle

Fluke is proud to introduce the TiX580, a rugged and superbly engineered 640 x 480 thermal imaging camera with SuperResolution mode up to 1280 x 960 resolution! This provides four times the resolution power of previous cameras in these categories. Building on 65 years of manufacturing the world’s top measurement tools, this camera offers stunning image quality at surprising affordability. Users can now perform thermal imaging inspections with more confidence and faster results – all with the ruggedness and ease of use expected from Fluke.

This camera features Fluke Connect® so you can wirelessly export and share images with your team. Make faster decisions by accessing inspection measurements from anywhere. Team members can instantly see the same data, at the inspection site and the office.

Features and benefits:

Stunning Image Quality

• Stunning 640×480 image quality at surprising affordability
• Enhanced image quality and temperature measurement accuracy – turn 640 x 480 images into 1280 x 960 image with SuperResolution Mode. That’s 4x the resolution and pixels.
• Optional 2x and 4x telephoto, wide angle and 25 micron macro smart lenses are available

Why work with anything less?

• Navigate and capture images faster with the industry’s only 5.7-inch touchscreen LCD with on-camera analytics for in-field image analysis
• See 150% more in your viewing area than a standard 3.5-inch screen

Flexible and Ergonomic Form Factor

• Easily navigate over, under and around objects with full 240° rotating lens and see the image before you capture it at almost any angle
• When using the camera outside, the rotating screen lets you make adjustments to minimize glare

Innovative Focus Options

• Capture a clear, accurate image focused throughout the field of view with MultiSharp™ Focus. Simply point and shoot — the camera automatically processes a stack of images focused near and far to get the best focus
• Instantly get an in-focus image with pinpoint accuracy of your target with Fluke’s exclusive LaserSharp® Auto Focus technology
• Quickly and accurately determine the distance to your target with a built-in professional grade laser distance meter

Key features for R&D users Infrared imagery and data import capabilities to MATVIEW® and LabVIEW®  software platforms

• Static infrared images and their data
• Streaming infrared data and its data
• Live line marker – temperature readings graphed along a horizontal line in image (image at left)

Powerful, new, easy-to-use Fluke Connect® desktop software
Included with purchase is this comprehensive and connected software platform that represents the future of integrated equipment maintenance, monitoring, analysis and reporting. It’s easier than ever to optimize thermal images, perform analytics, generate quick, customizable, robust reports and export images to the format of your choice in the cloud. And you will be able to integrate with Fluke Connect — the largest system of software and wireless tools in the world.
Fluke Connect desktop software features:

• Compatibility with all Fluke infrared cameras
• Modern visual design
• Intuitive navigation — easier to learn, easier and faster to work in
• Simplified work flows
• Simplified reporting workflow and better report templates
• Batch thermal image editing
• Real time data collection with LabVIEW® and METLAB® tool boxes for R&D applications
• Fluke Connect Cloud storage

Optional lenses to maximize your infrared camera’s performance.

• Pre-calibrated optional lenses: 2x and 4x telephoto and 25 micron/macro, let you capture images close up or from a distance
