BK Precision DAS220-BAT – Portable 10-Channel Data Recorder with Battery
- Extended battery life of up to 15 hours
- Wide 10-inch touchscreen TFT display
- 10 built-in universal analog inputs
- 16-bit vertical resolution
The DAS220-BAT measures parameters commonly found in process applications including voltage, temperature, current, resistance, frequency and pulse. It includes 10 built-in universal analog channels with convenient screw input terminals for portability. This recorder was developed by B&K Precision’s subsidiary Sefram in France, which specializes in the design and manufacture of data acquisition instruments, field strength meters, and other test and measurement instruments.
Measurement results can be viewed graphically and numerically on the 10-inch color touch screen and saved to internal solid-state memory or an external USB memory stick. Icon-driven menus make the instrument easy to navigate. The free DasLab Windows PC software allows users to remotely control and configure the recorder, transfer logging results and configuration files, and view live data in graphical or numerical format on the PC.

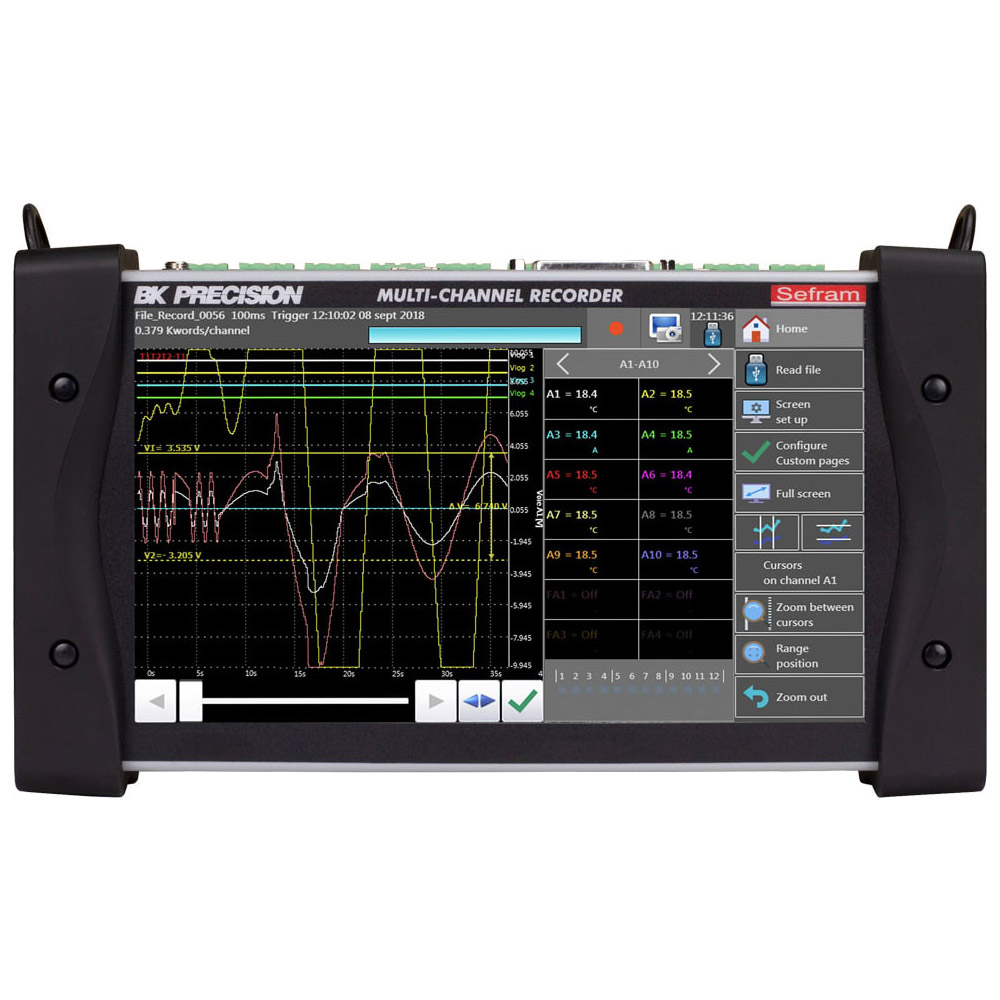

Front panel
Top input and connection panel
Flexible operation
Large display with icon-driven menus for easy setup and operation.
Comprehensive triggering capabilities: Configure triggers on analog and logic channels. Select from multiple combinations of thresholds, channels and conditions.
Numerical display of measured values
Channel setup displays all parameters on a single screen
Measurement display with zoom and cursors
Math calculations between channels
XY mode for plotting one varying voltage versus another
Internal file management
DasLab software
DasLab is a license-free Windows compatible software that can be downloaded from www.bkprecision.com. The software controls the recorder through the LAN or WiFi interface and provides the following features:
- Channel and trigger configuration
- Display live measurement results in graphical or numerical format
- File management, file upload and download of data recordings, screen captures and configuration files
DasLab file management
DasLab remote setup
Applications:
- Temperature logging with thermocouples and platinum resistance temperature sensors
- Voltage measurements down to ±0.5 mV range
- 4 – 20 mA current loop measurements
- Frequency, pulse totalization and pulse rotation measurements, which can be expressed in RPM (rotations per minute)
Tech Specs
Dataloggers / Data Acquisition/Data Recorders Template |
|
|---|---|
| Type (Recorders) | Data Logger |
| Style (Recorders) | Bench / Portable |
| Input Types (Controllers/Recorders) | Voltage |
| Power Source | Battery |
| Data storage | Yes |
| Accuracy | 0,1% of the full scale ±10μV |
Test Equipment General Attributes |
|
| Warranty | 2 YEARS |
| Interfaces I/O | LAN / Ethernet, Wifi, USB |
| Storage | Internal Memory |
| Product Weight | 4.5 LBS |
| Product Height | 11.7 IN |
| Product Length | 6.9 IN |
| Product Width | 2.6 IN |
| Shipping Weight | 6 LBS |
| HTS/Schedule B Number | 9030390000 |
| ECCN Number | 3A992 |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
| Country of Origin | France |
