Descripción

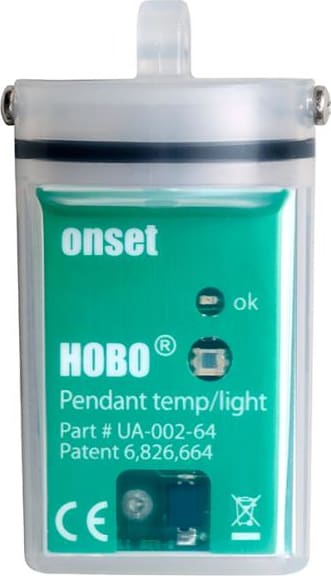

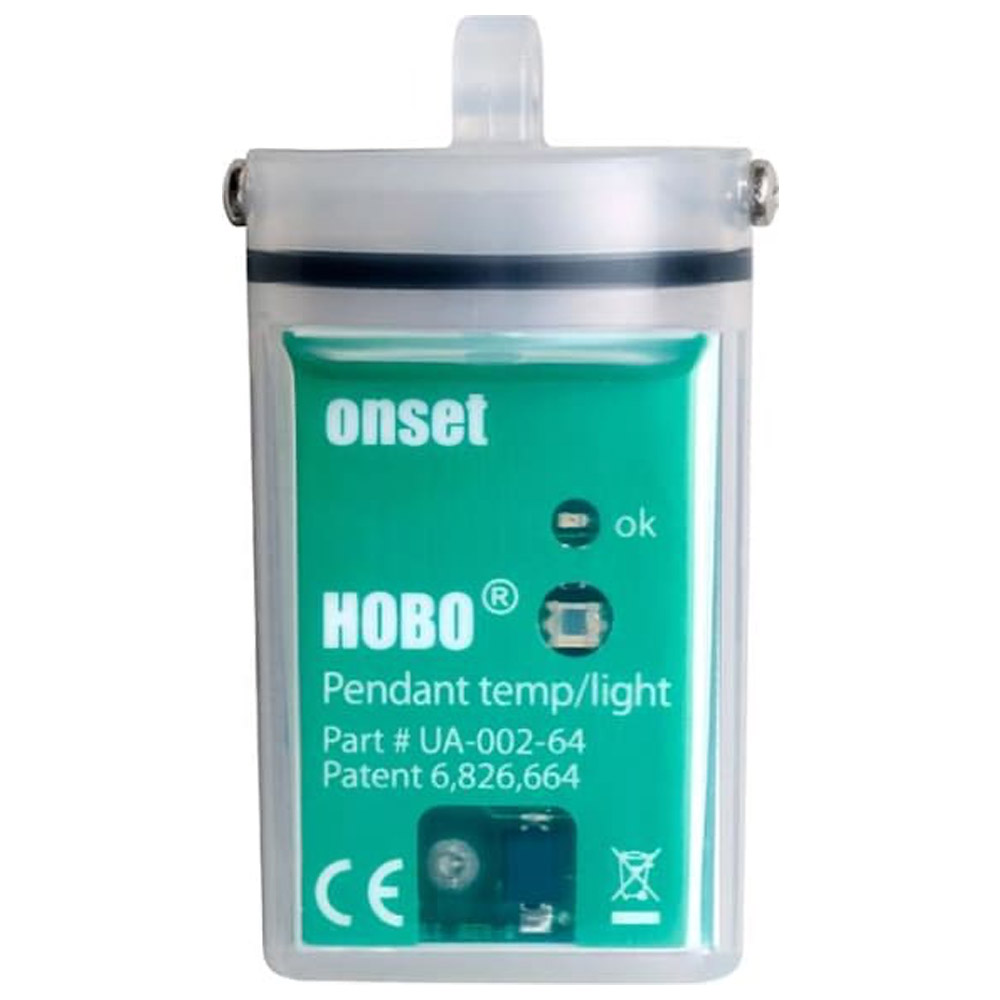

This miniature data logger can record temperature and relative light levels. Complete with waterproof casing, this product is designed for indoor, outdoor, and underwater deployment. This model can store approximately 52,000 measurments of 10-bit readings.
Environment:
The UA-002-64 Data Logger is for use in Outdoor and Underwater environments
Measurements:
The UA-002-64 Data Logger supports the following measurements:Temperature, Light Intensity, Water Temperature.
Manufacturer Specs
| Temperature | -20° to 70°C (-4° to 158°F) |
| Light | 0 to 320,000 lux (0 to 30,000 lumens/ft2) |
| Temperature | ± 0.53°C from 0° to 50°C (± 0.95°F from 32° to 122°F), see Plot A |
| Light intensity | Designed for measurement of relative light levels, see Plot D for light wavelength response |
| Resolution | |
| Temperature | 0.14°C at 25°C (0.25°F at 77°F), see Plot A |
| Drift | Less than 0.1°C/year (0.2°F/year) |
| Response time | |
| Airflow of 2 m/s (4.4 mph) | 10 minutes, typical to 90% |
| Water | 5 minutes, typical to 90% |
| Time accuracy | ± 1 minute per month at 25°C (77°F), see Plot B |
| Operating range | |
| In water/ice | -20° to 50°C (-4° to 122°F) |
| In air | -20° to 70°C (-4° to 158°F) |
| Water depth rating | 30 m from -20° to 20°C (100 ft from -4° to 68°F), see Plot C |
| NIST traceable certification | Available for temperature only at additional charge; temperature range -20° to 70°C (-4° to 158°F) |
| Battery life | 1 year typical use |
| Memory | 64K bytes (approximately 28K combined temperature and light readings or events) |
| Materials | Polypropylene case; stainless steel screws; Buna-N o-ring |
| Weight | 18 g (0.6 oz) |
| Dimensions | 58 x 33 x 23 mm (2.3 x 1.3 x 0.9 inches) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 70 C |
| Min Temperature | -20 C (-4 F) |
| Power Source | Battery |
| Battery Life | 1 YEARS (8760 HR) |
| Accuracy | Temperature: ± 0.53°C from 0° to 50°C (± 0.95°F from 32° to 122°F), see Plot A Light intensity: Designed for measurement of relative light levels, see Plot D for light wavelength response |
| LCD Screen | No |
Test Equipment General Attributes |
|
| Unique Features | Pendant Temperature/Light Data Logger 64K |
| Safety Approval | CE |
| Product Weight | 18 GRAMS (0.040 LBS) |
| HTS/Schedule B Number | 9025.19.8085 |
| ECCN Number | EAR99 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Other Information | Dimensions: : 58 x 33 x 23 mm |
