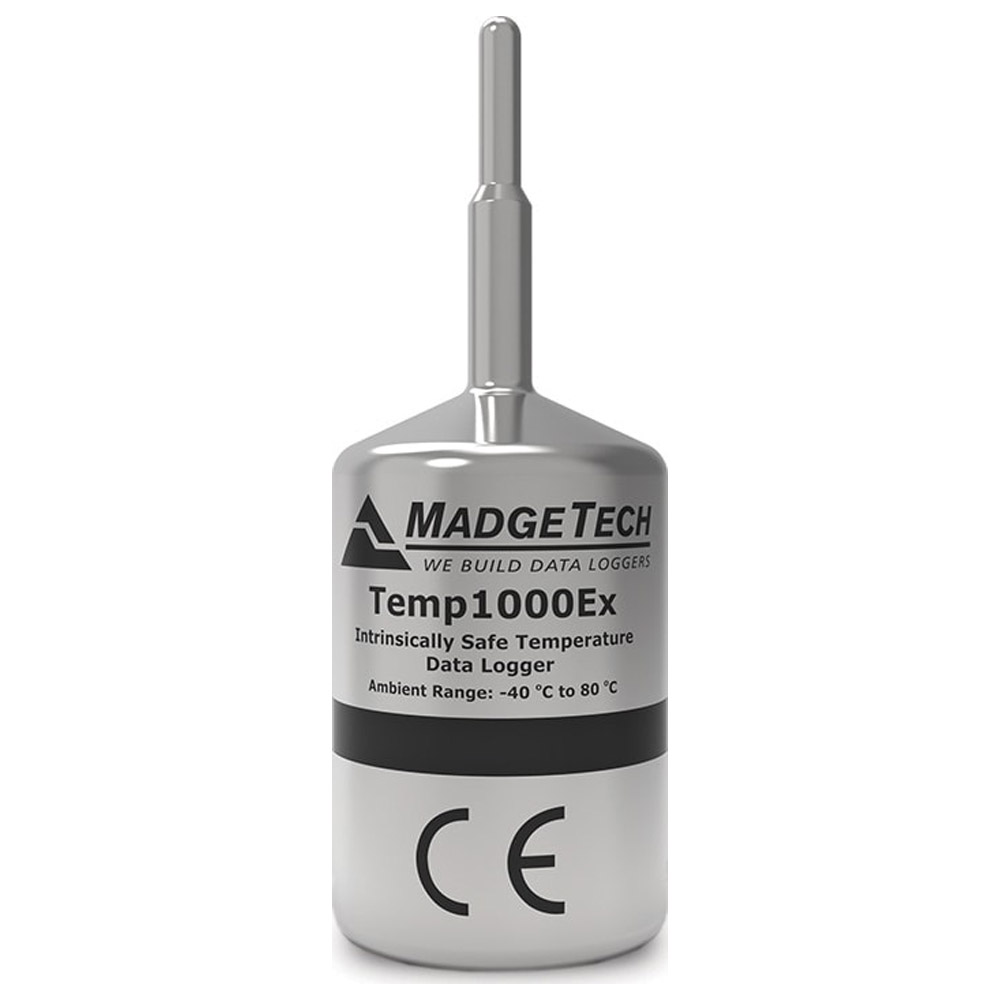

Madgetech Temp1000Ex-1-KR – Intrinsically Safe Temperature Data Logger with 1-inch Probe and Key Ring End Cap
- Intrinsically Safe Temperature Data Logger
- With 1-inch Probe and Key Ring End Cap
- Rugged
- Reusable
- Programmable Start Time
The Temp1000Ex is a compact, temperature data logger that carries hazardous location certification (ATEX, IECEx).
This one of a kind data logger is certified intrinsically safe for the following:
- Electrical Protection Concepts: ISO/IEC: 60079-11 Ex ia – Ex ic, Intrinsic Safety Zones 0-2
- Equipment Protection Level: Ga – Gc, Zones 0-2
- Gas Group: IIC
- Temperature Class: T4
The Temp1000Ex measures and records temperatures from -40 °C to +80 °C (-40 °F to +176 °F) with an accuracy of ±0.5 °C (0 °C to ±50 °C) and ±0.9 °F (32 °F to 122 °F). The Temp1000Ex can store up to 32,767 times and date stamped readings and is available with either a flush bottom or key ring end cap.
The Temp1000Ex is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.
Applications
- EtO Sterilization
- Implement HACCP Programs
- Food Preparation and Processing
- Environmental Studies
- Well Monitoring
- Dishwasher Testing
- Hazardous and Hostile Environment Monitoring
- Medical and Pharmaceutical
Manufacturer Specs
| General Specifications | |
| Memory | 65,536 Readings |
| Reading Rate | 1 reading every 2 seconds to 1 reading every 12 hours |
| Battery Life | 1 reading every second up to 1 reading every 24 hours |
| Material | 316 Stainless Steel/Radel |
| Dimensions | 2.66 in x .97 in dia. (67.6 mm x 24.6 mm dia.) |
| Key Ring End Cap | Key ring replaces standard bottom Thru-hole: 0.150″ |
| IP Rating | (Not Rated) Caution: Do not submerge this product to retain IS rating. |
| Operating Environment | -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 100 %RH (case properly sealed) |
| Required Interface Package | IFC400 or IFC406 |
| Approvals | CE ATEX Certificate #: 19ATEX0126 IECEx Certificate #: BAS 19.0109 |
| Temperature | |
| Temperature Sensor | Resistance Temperature Detector (RTD) |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.5 °C (0 °C to +50 °C), ±0.9 °F (32 °F to 122 °F) |
