Data Logger Madgetech Temp1000Ex-2 – Temperature

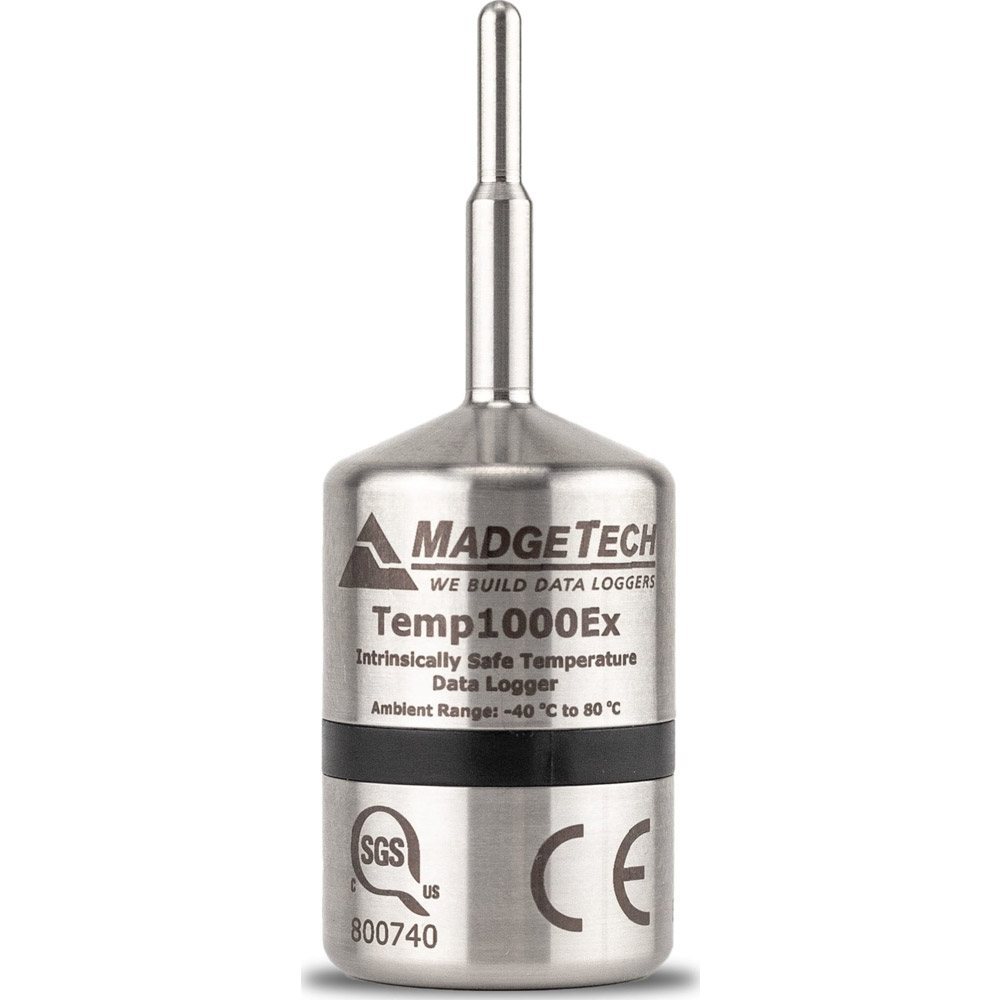

Madgetech Temp1000Ex-2 – Temperature Data Logger

• Temperature Data Logger with 2 inch probe
• Compact Size
• ATEX Approved
• Available in a Variety of Probe Lengths
• 2 years Battery life

The Temp1000Ex temperature data logger carries hazardous location and intrinsically safe global certification (ATEX, IECEx, FM 3610). Includes ISO 17025 accredited calibration certificate.

Connecting and Starting the Data Logger

1. Once the software is installed and running, plug the interface cable into the docking station (IFC400 or IFC406).
2. Connect the USB end of the interface cable into an open USB port on the computer.
3. Place the data logger into the docking station (IFC400 or IFC406).
4. The data logger will automatically appear under Connected Devices within the software.
5. For most applications, select Custom Start from the menu bar and choose the desired start method, reading rate and other parameters appropriate for the data logging application and click Star(Quick Start applies the most recent custom start options, Batch Start is used for managing multiple loggers at once, Real Time Start stores the dataset as it records while connected to the logger.)
6. The status of the device will change to Running, Waiting to Start or Waiting to Manual Start, depending upon your start method.
7. Disconnect the data logger from the interface cable and place it in the environment to measure.

Note: The device will stop recording data when the end of memory is reached or the device is stopped, unless user selectable memory wrap is enabled. At this point the device cannot be restarted until it has been re-armed by the computer
