Descripción

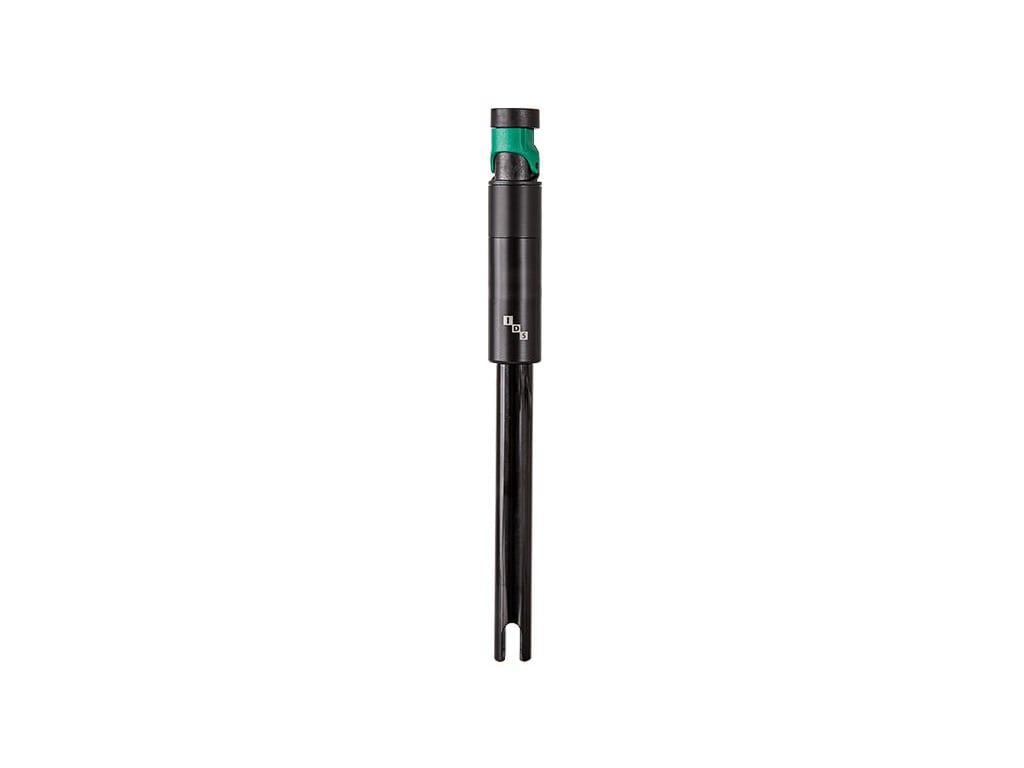

YSI IDS 4310W
Conductivity and Temperature Wireless Sensor
 |
|
The IDS sensors automatically store their unique serial number and calibration data. In addition, they also digitally process the measurement signal. The IDS sensors can be moved from instrument to instrument and maintain their calibration data and transmit that information to the new instrument.
One WA-S wireless sensor module must be installed at the top of each wireless sensor, while one WA-M wireless meter module is needed per MultiLab meter. We suggest the MultiLab WA Kit if wireless sensors will be used, as it includes one WA-S wireless sensor module, one WA-M wireless meter module, one charger for WA-S modules, and one USB power supply for the WA-S charger.
Wireless sensors can only be used with the MultiLab 4010-1W, MultiLab 4010-2W, and the MultiLab 4010-3W. Wireless sensors can be used with the MultiLab 4010-1 if the latest instrument firmware has been installed – see the Software and Firmware Downloads page.
The 4310W probe can only be calibrated with a 1,413 uS/cm conductivity standard (060906) (Select in «Option» drop down menu).
- Voltage electrode (inside, 2x)
- Current electrode (ring, 2x)
- Temperature sensor in graphite enclosure
- Shaft
- Connecting head with active electronics
- Connection cable (4310)
- IDS plug (4310W)
Manufacturer Specs
| General Specifications | |
| Cell Constant | 0.475 cm-1 ±1.5 % |
| Equipment used with | MultiLab Instruments |
| Measurement Range | Conductivity: 10 µS/cm to 2,000 mS/cm | Resistivity: 0.5 Ohm cm to 100 kOhm cm | Salinity: 0.0 to 70.0 ppt | Total Dissolved Solids: 0 to 1,999 mg/L; 0.0 to 199.9 g/L | Temperature: 0 to 100ºC |
| Minimum Immersion Depth | 36 mm |
| Parameters Measured | Conductivity, Temperature |
| Storage Temperature | 0 to 50 °C |
| Warranty | 2 years |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Max Temperature | 50 C |
Test Equipment General Attributes |
|
| Warranty | 2 YEARS |
