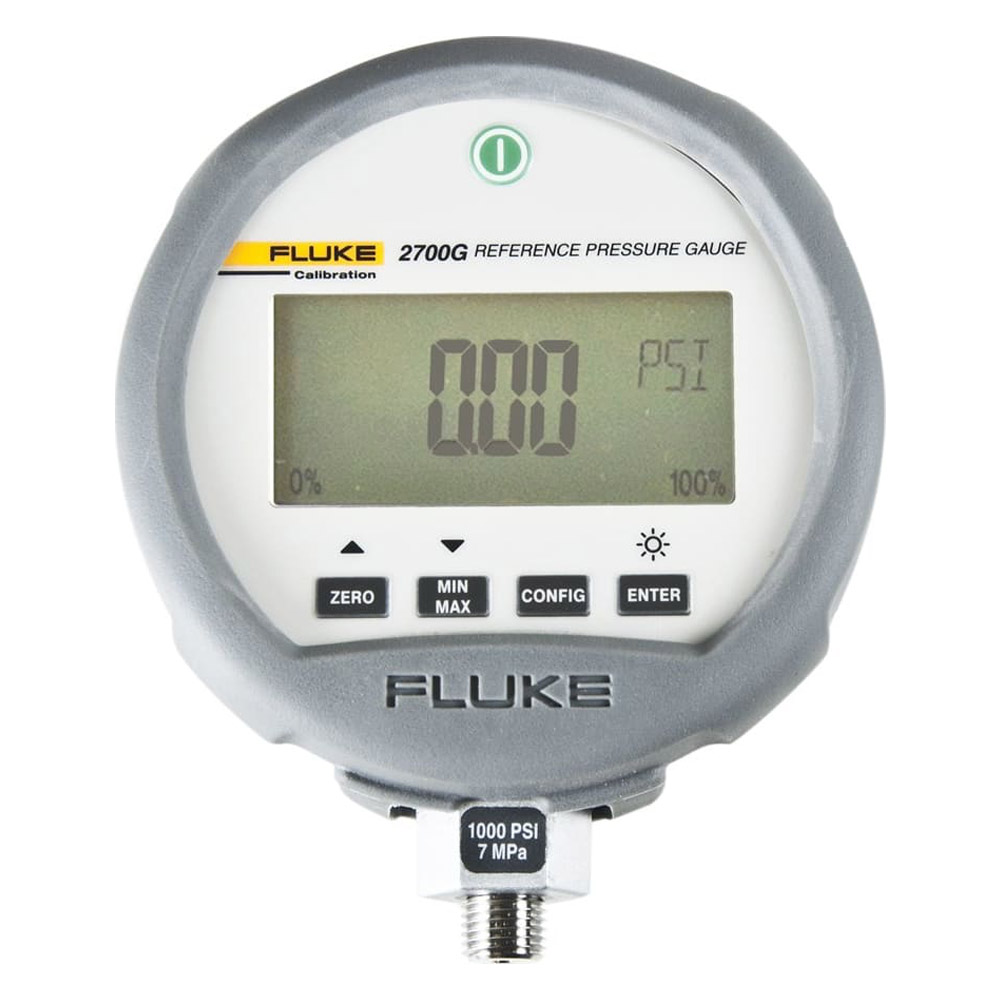

The 2700G Reference Pressure Gauges provide best-in-class measurement performance in a rugged, easy-to-use, economical package. Improved measurement accuracy allows it to be used for a wide variety of applications. It is ideal for calibrating pressure measurement devices such as pressure gauges, transmitters, transducers, and switches. In addition, it can be used as a check standard or to provide process measurements with data logging.
The 2700G has an easy-to-use interface that allows you to configure the sampling rate, tare value, damping, and auto-off time interval as well as reset the min/max pressure. You can also view the remaining battery life. Select from 21 different standard engineering units, including bar, in H2O, kPa, MPa, and psi. In addition, the supervisor menu can be used to set one custom engineering unit. To ensure against incorrect measurements, each of the above functions can be locked from use through the supervisor menu.
The 2700G Reference Pressure Gauge can be combined with the Fluke Calibration P5500 series of comparison test pumps to make a complete pressure calibration system. The unique test port design of the P5500 series allows for hand tight connection of the 2700G without the use of PTFE tape.
Use the 2700G with these comparison test pumps for a complete bench top pressure calibration solution
P5510 Pneumatic Comparison Pump
- Pressure range: 0 to 2 MPa (300 psi)
- Vacuum range: 0 to 80 kPa (24 inHg)
- 2700G and device under test (DUT) can be connected without the use of tools or PTFE tape
- Built-in hand pump as pressure/vacuum source
- High-quality needle valve for fine control
P5513 Pneumatic Comparitor
- Pressure range: 0 to 20 MPa (3000 psi)
- High pressure pneumatic operation
- Screw press for fine pressure adjustment
- High quality needle valve for metering in supply pressure 2700G and DUT can be connected without the use of tools or PTFE tape
P5514 Hydraulic Comparison Pump
- Pressure range: 0 to 70 MPa (10 000 psi)
- Bench mount design
- Screw pressure for pressure generation
- 2700G and DUT can be connected without the use of tools or PTFE tape
- Operates with a wide range of fluids (Viton seals standard, EP seals available)
P5515 Hydraulic Comparison Pump
- Pressure range: 0 to 140 MPa (20 000 psi)
- Built-in priming pump for large volume applications and system priming
- High-quality screw press for pressure generation and fine control
- Clear acrylic reservoir for visibility of fluid level and quality
- Built-in drain plug for easy removal of fluid
- Sturdy carrying case with lid
- Operational with a wide range of fluids (Viton seals standard, EP seals available)
- 2700G and DUT can be connected without the use of tools or PTFE tape
Manufacturer Specs
| Model | Range | Resolution | Uncertainty (k=2) | Burst pressure |
Media compatibility |
| 2700G-BG100K | –15 psi to 15 psi –100 kPa to 100 kPa |
0.001 psi 0.0001 bar |
Positive pressure ± 0.02 % FS Vacuum ± 0.05 % FS |
45 psi 0.3 MPa |
Note 1 |
| 2700G-BG200K | –15 to 30 psi –100 kPa to 200 kPa |
0.001 psi 0.0001 bar |
90 psi 0.6 MPa |
Note 1 | |
| 2700G-BG700K | –12 psi to 100 psi –80 kPa to 700 kPa |
0.01 psi 0.0001 bar |
1000 psi 7 MPa |
Note 2 | |
| 2700G-BG2M | –12 psi to 300 psi –80 kPa to 2 MPa |
0.01 psi 0.001 bar |
2000 psi 14 MPa |
Note 2 | |
| 2700G-BG3.5M | –12 psi to 500 psi –80 kPa to 3.5 MPa |
0.01 psi 0.001 bar |
2000 psi 14 MPa |
Note 2 | |
| 2700G-BG7M | –12 to 1000 psi –80 kPa to 7 MPa |
0.1 psi 0.001 bar |
10 000 psi 70 MPa |
Note 2 | |
| 2700G-G20M | 0 to 3000 psi 0 to 20 MPa |
0.1 psi 0.01 bar |
10 000 psi 70 MPa |
Note 3 | |
| 2700G-G35M | 0 to 5000 psi 0 to 35 MPa |
0.1 psi 0.01 bar |
10 000 psi 70 MPa |
Note 3 | |
| 2700G-G70M | 0 to 10 000 psi 0 to 70 MPa |
1 psi 0.01 bar |
15 000 psi 100 MPa |
Note 3 | |
| Uncertainty includes linearity, hysteresis, repeatability, resolution, reference uncertainty, 1 year long term stability, and temperature effects from 18 to 28 °C. For temperatures from 0 °C to 18 °C and 28 °C to 50 °C, add 0.003% FS/°C |
|||||
| Media compatibility: Note 1: Any clean, dry non-corrosive gas Note 2: Any liquids or gases compatible with 316 stainless steel Note 3: Any non-flammable, non-toxic, non-explosive, non-oxidizing liquid or gas compatible with 316 stainless steel |
|||||
| Mechanical specifications | |
| Dimensions (HxWxD) | 12.7 cm x 11.4 cm x 3.7 cm (5 in x 4.5 in x 1.5 in) |
| Pressure connection | ¼ in NPT Male |
| Housing/weight | Cast ZNAL/0.56 kg (1.22 lb) |
| Display | 5-1/2 digits, 16.53 mm (0.65 in) high 20-segment bar graph, 0 to 100 % |
| Power | Three AA alkaline batteries |
| Battery life | 75 hours |
Tech Specs
Process / Calibration/Pressure Calibration/Process Pressure Gauges Template |
|
|---|---|
| Type (Pressure) | Compound (Vacuum to Gauge), Gauge, Vacuum |
| Style (Press Gauge) | Digital Indicating |
| Accuracy (Digital-ASME B40.100 / B40.7 Grades) | 0.02% F.S. Reference, 0.05% F.S. (Grade 5A) Precision Test |
| Units of Measure (Gauges) | bar, cmH2O, ftH2O, inH2O, inHg, kg/cm2, kPa, mbar, MPa, Program Custom Units (digital), psi, Torr |
| Gauge Case Size | 4.5″ (114 mm) |
| Gauge Case Material | ZnAl Alloy |
| Wetted Part Material | Stainless Steel (SS) |
| Special Functions / Options (Press Gauge) | Adjustable Sample Rate (digital gauges), Damping Function (digital gauges), Data Logging, Min / Max Hold, PC Communications, Protective Rubber Boot, Temperature Compensated, Zero Function |
| Power (Press Gauges) | Battery |
| Connection Location (Press Gauges) | Lower |
| Maximum Range Pressure (Gauges) | 1000 psi |
| Minimum Range Pressure (Gauges) | -12 psi |
| # Digit Display | 5.5 |
| Counts | 100000 . |
| Process Connection | NPT (National Pipe Thread) |
Test Equipment General Attributes |
|
| Unique Features | Precision pressure measurement. Easy-to-use, rugged construction for reliable performance. Media Compatibility: Any liquids or gases compatible with 316 stainless steel NIST Calibration Certificate |
| Warranty | 1 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | USB |
| Product Weight | 1.22 LBS |
| Product Height | 5 IN |
| Product Length | 4.5 IN |
| Product Width | 4.5 IN |
| Shipping Weight | 2.86 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9026.20.8000 |
| ECCN Number | EAR99 |
| Calibration Included | NIST Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 3.5 IN |
| UPC | 095969623537 |
| Shipping Length | 10 IN |
| Shipping Width | 7.8 IN |
