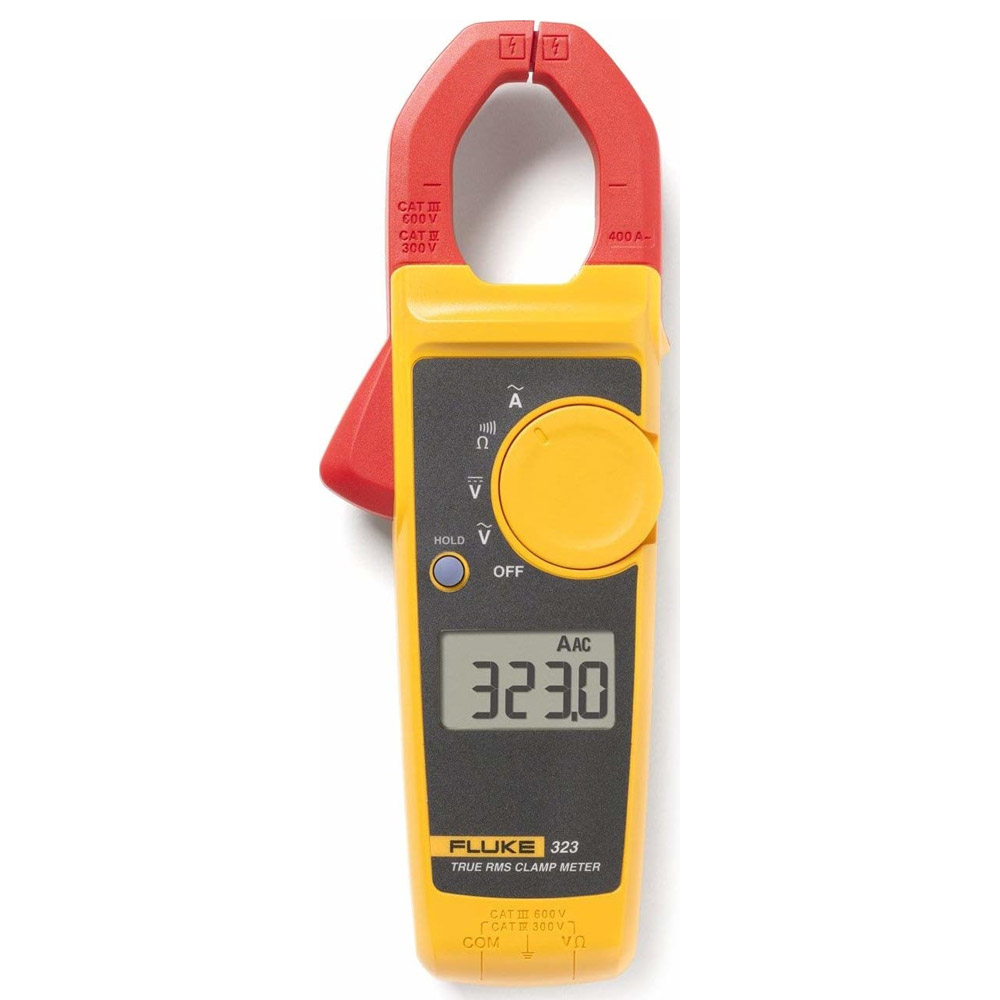

Fluke 323 True-RMS Clamp Meter Fluke rugged. Fluke reliable. Fluke precise.
True-RMS measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians. The Fluke 323 model is ideally suited for current measurements up to 400 A in tight cable compartments.
The Fluke 323, 324 and 325 Clamp Meters are designed to perform in the toughest environments and provide noise-free, reliable results users can trust to confidently diagnose problems. True-rms measurements and optimized ergonomics make the 320 Series Clamp Meters the best general troubleshooting tools for commercial and residential electricians.
Quick Comparison
323:
AC Current to 400A TRMS
AC/DC Voltage to 600V
Resistance 400.0 Ω/4000 Ω
Continuity ≤ 70 Ω
324:
AC Current to 40/400A TRMS
AC/DC Voltage to 600V
Resistance 400.0 Ω/4000 Ω
Continuity ≤ 30 Ω
Capacitance 100.0 μF to 1000 μF
Contact Temp 14.0 °F to 752.0 °F (requires 80BK-A or 80AK-A + K-type Probe)
Backlight
325:
AC/DC Current to 40/400A (AC TRMS)
AC/DC Voltage to 600V
Resistance 400.0 Ω/4000 Ω
Continuity ≤ 30 Ω
Capacitance 100.0 μF to 1000 μF
Contact Temp 14.0 °F to 752.0 °F (requires 80BK-A or 80AK-A + K-type Probe)
Frequency 5.0 Hz to 500.0 Hz
Backlight
Manufacturer Specs
| Image |  |
|
|
| Model | 323 | 324 | 325 |
| AC current | |||
| Range | 400.0 A | 40.00 A/400.0 A | 40.00 A/400.0 A |
| Accuracy | 2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz) |
2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz) |
2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz) |
| DC current | |||
| Range | – | – | 40.00 A/400.0 A |
| Accuracy | – | – | 2 % ± 5 digits |
| AC voltage | |||
| Range | 600.0 V | 600.0 V | 600.0 V |
| Accuracy | 1.5 % ± 5 digits | 1.5 % ± 5 digits | 1.5 % ± 5 digits |
| DC voltage | |||
| Range | 600.0 V | 600.0 V | 600.0 V |
| Accuracy | 1.0 % ± 5 digits | 1.0 % ± 5 digits | 1.0 % ± 5 digits |
| Resistance | |||
| Range | 400.0 Ω/4000 Ω | 400.0 Ω/4000 Ω | 400.0 Ω/4000 Ω/40.00 kΩ |
| Accuracy | 1 % ± 5 digits | 1 % ± 5 digits | 1 % ± 5 digits |
| Continuity | ≤ 7Ω | ≤ 3Ω | ≤ 3Ω |
| Capacitance | – | 100.0 µF to 1000 µF | 100.0 µF to 1000 µF |
| Frequency | – | – | 5.0 Hz to 500.0 Hz |
| AC response | True-rms | True-rms | True-rms |
| Backlight | – | Yes | Yes |
| Data hold | Yes | Yes | Yes |
| Contact temperature | – | -10.0 °C to 400.0 °C (14.0 °F to 752.0 °F) |
-10.0 °C to 400.0 °C (14.0 °F to 752.0 °F) |
| Min/Max | – | – | Yes |
| Size | |||
| H x W x D (mm) | 207 x 75 x 34 | 207 x 75 x 34 | 207 x 75 x 34 |
| Max wire diameter | 30 mm (600 MCM) | 30 mm (600 MCM) | 30 mm (600 MCM) |
| Weight | 265 g | 208 g | 283 g |
| Category rating | CAT III 600 V CAT IV 300 V |
CAT III 600 V CAT IV 300 V |
CAT III 600 V CAT IV 300 V |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Manual |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Slim, ergonomic design. Large, easy to read backlight display. CAT IV 300V/CAT III 600 V safety rating. Hold button. Two-year warranty. Soft carrying case. |
| Warranty | 2 YEARS |
| Safety Approval | CE, CSA |
| Product Weight | 1.67 LBS |
| Product Height | 2.95 IN |
| Product Length | 9.45 IN |
| Product Width | 4.33 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Calibration Included | None |
| CA Residents | Warning: Cancer and Reproductive Harm – www.P65Warnings.ca.gov |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Malaysia |
| UPC | 095969623742 |
