Descripción

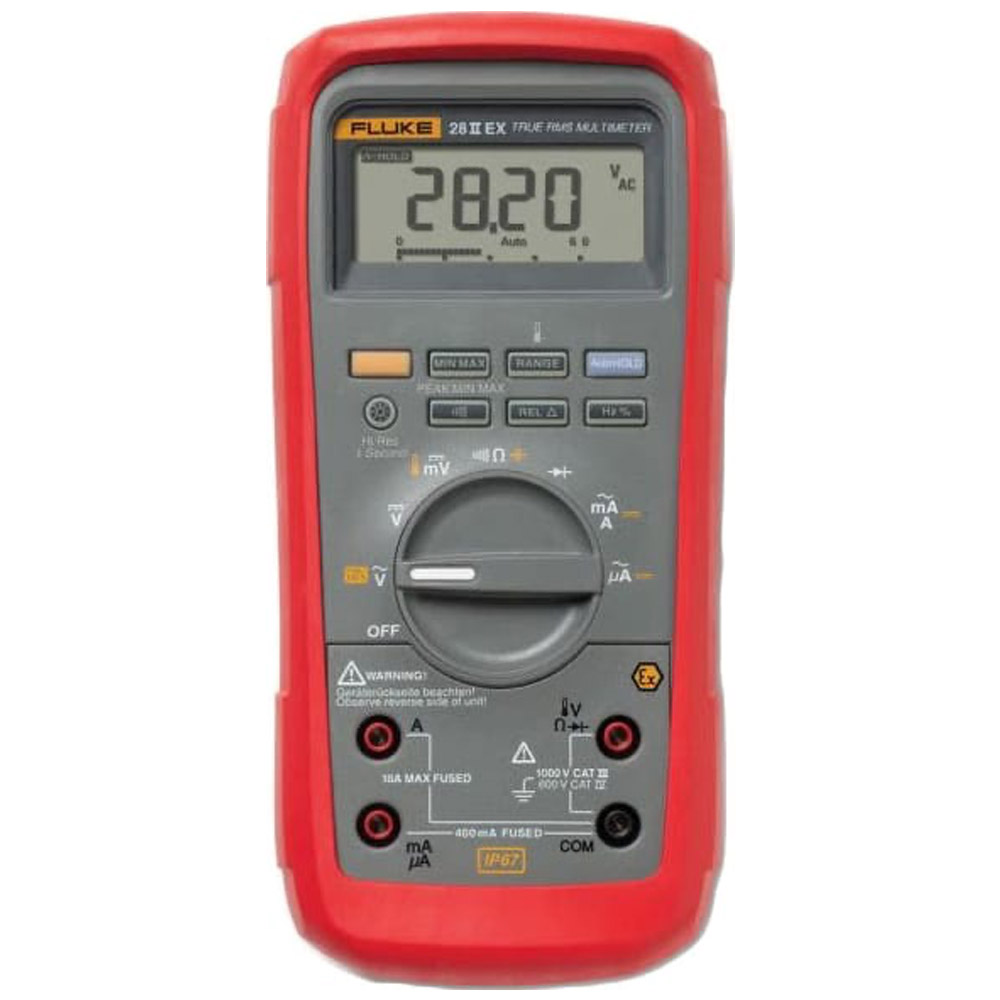

Fluke 28IIEX/ETL Intrinsically Safe True-rms Digital Multimeter
- A completely sealed, IP67 rated case
- Withstands drops up to 10 ft or 3 m (with holster)
- Dustproof per IEC60529 IP6x
- Waterproof per IEC60529 IPx7
- Meets IEC Overvoltage Electrical Safety Standard No. 61010-1:2001
- Reversible holster for added protection of the display when not in use
Intrinsically Safe True RMS Digital Multimeter
Fluke 28 II Ex/ETL Intrinsically Safe True RMS Digital Multimeter 4017176 is capable of being used both inside and outside ATEX zones 1, 2, 21, or 22 to get the job done with one instrument. Extremely durable meter to handle any conditions Mother Nature might throw its way. The Fluke 28 II Ex Intrinsically Safe True RMS Digital Multimeter measures AC/DC Voltage, AC/DC Current, Resistance, Conductance, Diode Test, Duty Cycle, Capacitance, Frequency, and Temperature.
Now there’s one intrinsically safe digital multimeter (DMM) you can use in IIC (gas), in Zone 1 and 2 and IIIC (dust), Zone 21 and 22. Whether you work in petroleum, chemical, or pharmaceutical environments, all the test and troubleshooting power you need is packed into the most rugged intrinsically safe (IS) DMM Fluke has ever built. The Fluke 28 II Ex is also waterproof, dust-proof and drop-proof. You’ll be equipped to handle any situation, inside and outside of hazardous zones, without compromising compliance or measurement performance.
Manufacturer Specs
| Basic Accuracy Specifications | |
| Accuracy specifications are show as +/- (% of reading + number of digits) | |
| DC voltage | Range 0.1 mV to 1000 V Accuracy ±0.05 % + 1 |
| AC voltage | Range: 0.1 mV to 1000 V Accuracy: ±0.7 % +4 |
| DC current | Range: 0.1 ±A to 10 A Accuracy: ±0.2 % + 4 |
| AC current | Range: 0.1 ±A to 10 A Accuracy: ±1.0 % + 2 |
| Resistance | Range: Range: 0.1 O to 50 MO Accuracy ±(0.2 % + 1) |
| Conductance | Range: 60.00 nS Accuracy: ± (1.0 % + 10) |
| Diode Test | Range: 2.0 V Accuracy: ± (2.0 % + 1) |
| Duty Cycle | Range: 0.0 % to 99.9 % Accuracy: Within ±(0.2 % per kHz + 0.1 %) for rise times <1 ±s |
| Display counts | 6000 counts/19,999 counts in high-resolution mode |
| Capacitance | Range: 10 nF to 9999 ±F Accuracy: ± (1.0 % + 2) |
| Frequency | Range: 0.5 Hz to 199.99 kHz Accuracy: ± (0.005 % + 1) |
| Temperature | Range: -200 °C to +1090 °C (-328 ±F to +1994 ±F) Accuracy: ± (1.0 % + 10) °C [± (1.0 % + 10) ±F] |
| Peak Capture | Record transients up to 250 us |
| Min/Max/Avg Recording | Display signals up to approximately 100 ms |
| Safety Specifications | |
| Safety certifications | |
| ATEX | II 2 G Ex ia IIC T4 Gb II 2 D Ex ia IIIC T130 °C Db I M1 Ex ia I Ma |
| NEC-500 | Class I, Div 1, Groups A-D, 130 °C |
| IEXEx | Ex ia IIC T4 Gb Ex ia IIIC T130 °C Db Ex ia I Ma |
| GOST R Ex (Pending) | Overvoltage protection: Measurement Category III, 1000V, Pollution Degree 2 Measurement Category IV, 600V, Pollution Degree 2 IP rating: IP67 |
| General Specifications | |
| Power | Three AAA batteries Battery life: 400 hours |
| Display | LCD, with backlight |
| External protection | Rubber holster |
| Warranty | Three years |
| Size with holster (HxWxL) | 6.35 cm x 10.0 cm x 19.81 cm (2.5 in x 3.93 in x 7.8 in) |
| Weight with holster | 698.5 g (1.54 lb) |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Current AC | 10 A |
| Maximum Current DC | 10 A |
| # Digit Display | 4.5 |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | Yes |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
Test Equipment General Attributes |
|
| Safety Approval | CE, CSA |
| IP Rating | IP67 |
| Product Height | 3.36 IN |
| Product Length | 9.70 IN |
| Product Width | 6.30 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.32.0000 |
| ECCN Number | EAR99 |
| Calibration Included | None |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 3.36 IN |
| Shipping Length | 9.70 IN |
| Shipping Width | 6.30 IN |
