Descripción

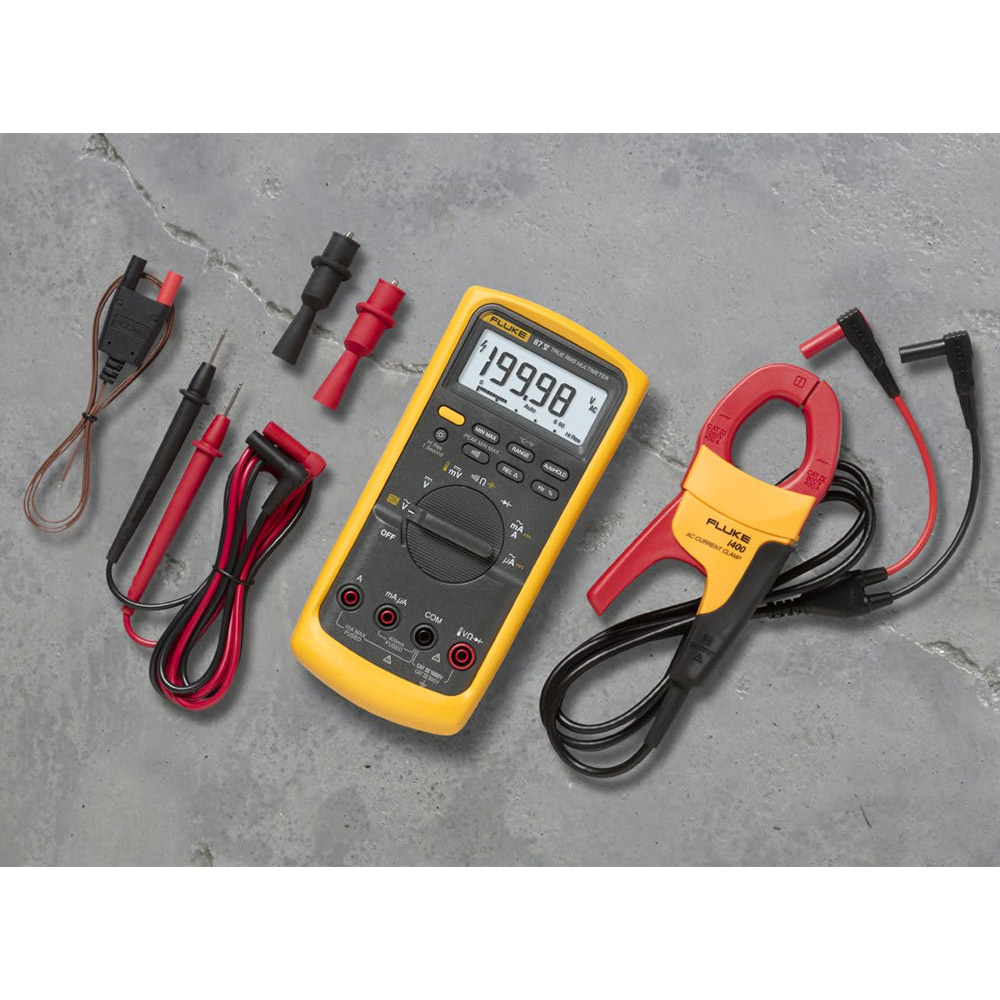

Fluke has combined the best selling feature packed 87V Multimeter with the i400 AC Current Clamp. Together they provide the ability to troubleshoot most industrial problems, providing you with the functionality you need to effectively do your job. Additionally, the 87V/IMSK kit represents a significant savings over buying the items separately.
Save Money with a NEW Industrial Meter Service Kit!
The Fluke 87V now can be purchased as a bundle with the Fluke i400 Current Clamp to increase productivity while saving money.
The new Fluke 87V has improved measurement functions, trouble-shooting features, resolution and accuracy to solve more problems on motor drives, in plant automation, power distribution and electro-mechanical equipment.
The 87V operates very similar to the classic 87, but with more problem solving power, safety, convenience and impact protection.
The 80 series V are independently tested to comply with the 2nd edition of ANSI/ISA S82.01 and EN61010-1 CAT IV 600V/CAT III 1000V. They can withstand impulses in excess of 8,000 V and reduce risks related to surges and spikes.
The i400 is a single range 400 A ac current clamp with current output via safety shrouded banana plugs. The clamp is compatible with most Fluke multimeters or any other current measurement device that accepts 4mm-shrouded banana plugs and has an AC milliamp range. The division ratio is 1000:1.
Measures:
- Unique function for accurate voltage and frequency measurements on adjustable speed motor drives and other electrically noisy equipment (87-5, 87-5/E Kit)
- True-rms ac voltage and current for accurate measurements on non linear signals (87-5, 87-5/E Kit)
- Built in thermometer conveniently allows you to take temperature readings without having to carry a separate instrument (87-5, 87-5/E Kit)
- Measure up to 1000 V AC and DC
- Measure up to 10 A (20 A for 30 seconds)
- 10,000 µF capacitance range
- Frequency to 200 kHz and % duty cycle
- Peak capture to record transients as fast as 250 µs (87-5, 87-5/E Kit)
- 4½ digit mode (87-5, 87-5/E Kit)
Manufacturer Specs
| 87V Specifications | ||
| DCV | ||
| Maximum Voltage | 1000V | |
| Accuracy | Fluke 83 V | ±(0.1%+1) |
| Fluke 87 V | ±(0.05%+1) | |
| Maximum Resolution | Fluke 83 V | 100 µV |
| Fluke 87 V | 10 µV | |
| ACV | ||
| Maximum Voltage | 1000V | |
| Accuracy | Fluke 83 V | ±(0.5%+2) |
| Fluke 87 V | ±(0.7%+2) True RMS | |
| AC Bandwidth | Fluke 83 V | 5kHz |
| Fluke 87 V | 20kHz (with low pass filter; 3db @ 1kHz) | |
| Maximum Resolution | 0.1 mV | |
| DC Current | ||
| Maximum Amps | 10A | |
| Amps Accuracy | Fluke 83 V | ±(0.4%+2) |
| Fluke 87 V | ±(0.2%+2) | |
| Maximum Resolution | Fluke 83 V | 0.01 mA |
| Fluke 87 V | 0.01 µA | |
| AC Current | ||
| Maximum Amps | 10A | |
| Amps Accuracy | Fluke 83 V | ±(1.2%+2) |
| Fluke 87 V | ±(1.0%+2) True RMS | |
| Maximum Resolution | 0.1 µA | |
| Resistance | ||
| Maximum Resistance | 50 MΩ | |
| Accuracy | Fluke 83 V | ±(0.4%+1) |
| Fluke 87 V | ±(0.2%+1) | |
| Maximum Resolution | 0.1Ω | |
| Capacitance | ||
| Maximum Capacitance | 9,999 µF | |
| Accuracy | ±(1%+2) | |
| Maximum Resolution | 0.01 nF | |
| Frequency | ||
| Maximum Frequency | 200 KHz | |
| Accuracy | ±(0.005%+1) | |
| Maximum Resolution | 0.01 Hz | |
| Duty Cycle | ||
| Maximum Duty Cycle | 99.9 % | |
| Accuracy | ±(0.2 per KHz +0.1%) | |
| Maximum Resolution | 0.1 % | |
| Temperature Measurement | ||
| 87 V | -200.0°C – 1090°C | |
| 87 V/E | -328.0°F – 1994.0°F, 1.0% excluding probe | |
| 80 BK Temperature Probe | ||
| 87 V | -40°C – 260°C | |
| 87 V/E | -40°F – 500°F, 2.2°C or 2% whichever is greater | |
| Conductance | ||
| Maximum Conductance | 60.00 nS | |
| Accuracy | ±(1.0%+10) | |
| Maximum Resolution | 0.01 nS | |
| Operating Range | ||
| Operating Temperature | -20°C – 55°C | |
| Storage Temperature | -40°C – 60°C | |
| Physical | ||
| Dimensions | 5.2 cm x 9.8cm x 20.1 cm (2.06” x 3.86” x 7.93”) | |
| Weight | 624 g (22 oz.) | |
| Included Accessories | ||
| 87V and 83V | TL75 test leads, AC72 Alligator Clips, Holster, 9V battery (installed), Getting Started Manual, and CD with detailed manual. 87V includes an 80BK temperature probe. | |
| 87V/E | 87V, TL224 silicone test leads, AC220 long reach alligator clips, TP238 test probes, magnet and strap, 80BK temperature probe, holster, 9V battery (installed), Getting Started Manual, and CD with detailed manual. | |
| i400 Specifications | |
| Nominal current range | 400A |
| Continuous current range | 1 A – 400 A |
| Maximum Non-Destructive Current | 1000 A |
| Lowest measurable current | 1 A |
| Basic accuracy | 2% + 0.06 A (45-400 Hz) (% reading + floorspec) |
| Useable frequency | 5 Hz – 20 kHz |
| Output level(s) | 1 mA/A |
| Safety Specifications | |
| Safety | CAT IV 600 V, CAT III, 1000 V |
| Maximum voltage | 1000 V AC rms from earth to ground, in compliance with EN61010 |
| Mechanical & General Specifications | |
| Warranty | 1 year |
| Maximum conductor diameter | 32 mm (1.25 inches) |
| Maximum conductor size (busbar) | 750 MCM |
| Output cable length | 1.5 m (59 inches) |
| Shrouded banana plugs | Yes |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 1 V (1000 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 V (1000 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.1 mA |
| Resolution AC Current | 0.01 A (10 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.1 mA |
| Resolution DC Current | 0.01 mA |
| Basic Accuracy V DC | ± (0.05 % + 1) |
| # Digit Display | 4.5 |
| Counts | 4000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | Yes |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
| Duty Cycle % | Range: 0.0 to 99.9 %
Accuracy: Within ± (0.2 % per kHz + 0.1 %) for risetimes < 1 μs |
Test Equipment General Attributes |
|
| Unique Features | Industrial Multimeter Service Combo Kit
Includes: ◦Fluke 87V Industrial Multimeter and all of its features ◦TL-75 Test Leads ◦AC175 Alligator Clips ◦i400, 400A AC current clamp ◦80BK-A DMM Temperature Probe ◦9V battery (installed) |
| Warranty | 10 YEARS |
| Safety Approval | CSA, UL |
| Interfaces I/O | Analog Output, Other, Wifi, Analog Input |
| Product Weight | 355 GRAMS (0.783 LBS) |
| Product Height | 1.25 IN |
| Product Length | 7.35 IN |
| Product Width | 3.41 IN |
| Shipping Weight | 3.75 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.32.0000 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 9 IN |
| Shipping Length | 12 IN |
| Shipping Width | 12 IN |
