Descripción

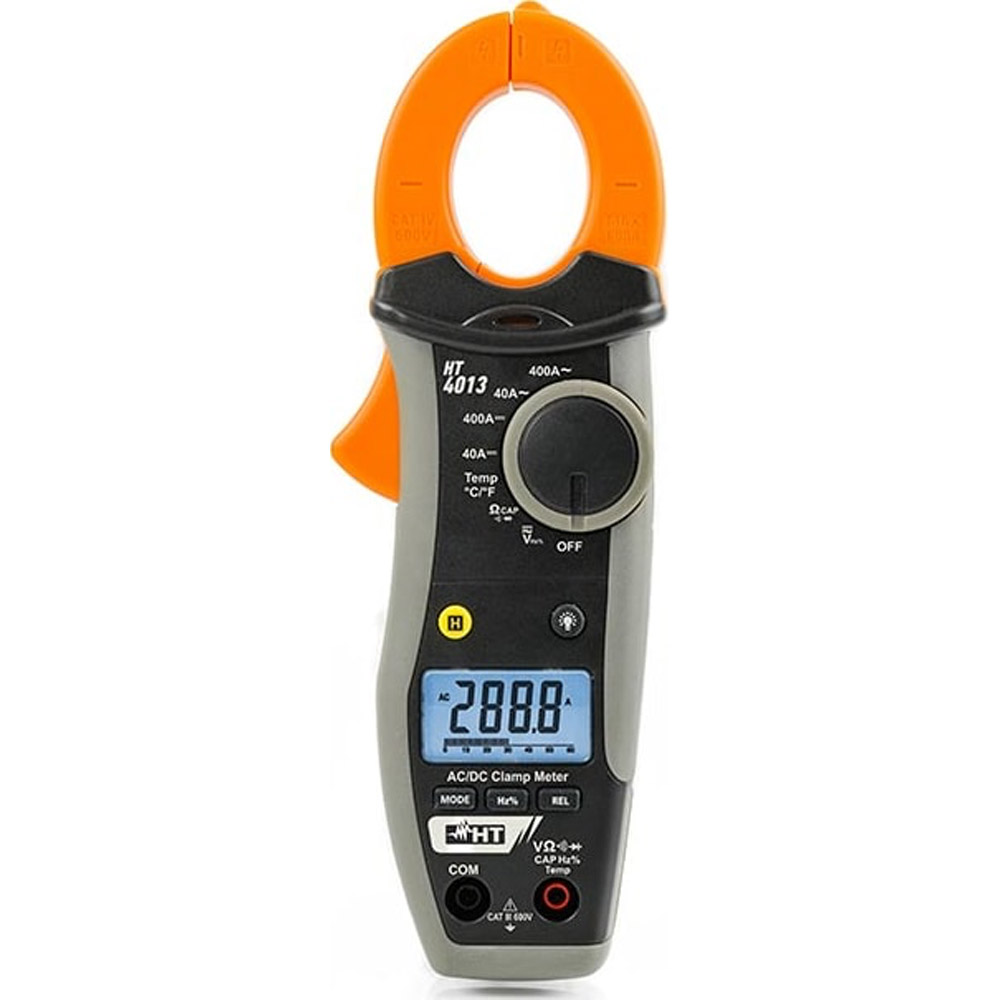

Clamp meter AC/DC 400A with temperature measurement with K-type probe.
Clamp meter HT4013 has been designed to measure AC/ DC current up to 400A and AC/DC voltage up to 600V to reach CAT III 600V in compliance with standard IEC/ EN61010-1.
The clamp is provided with an internal sensor to detect AC voltage also without contact, through a red LED turning on. This model also carries out measurements of Resistance, Continuity tests, Frequency, Capacity, Diode test, Duty Cycle and Temperature with K-type probe, among others. The clamp is also provided with the auto power off function to preserve its own battery.
Manufacturer Specs
| Current measuring range | 400A |
| AC/DC voltage | 600V |
| Supply | |
| Battery type | 2×1.5V batteries type AAA LR03 |
| Low battery indicator available | Yes |
| Auto Power OFF | after 30 minutes of idleness (not disabled) |
| Display | |
| Characteristics | 4 LCD (max 4000 counts), decimal point, unit symbol indication |
| Sample rate | 2 times/sec |
| Conversion mode | mean value |
| Climatic conditions | |
| Reference temperature | 18°C ÷ 28°C |
| Operating temperature | 5 ÷ 40 °C |
| Operating humidity | <80%RH |
| Storage temperature | -20 ÷ 60 °C |
| Storage humidity | <80%RH |
| Mechanical characteristics | |
| Size (L x W x H) | 200 x 66 x 37mm |
| Weight (including battery) | 205g |
| Max conductor size | 30mm |
| Reference guidelines | |
| Safety | IEC/EN61010-1, CE MARK |
| EMC | IEC/EN61326-1 |
| Insulation | double insulation |
| Pollution level | 2 |
| For inside use, max height | 2000m |
| Measurement category | CAT III 600V to ground |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| Maximum Current AC | 400 A |
| Maximum Current DC | 400 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 30 MM (1.18 IN) |
| Resistance | Yes |
| Capacitance | Yes |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| Product Weight | 205 GRAMS (0.452 LBS) |
| Product Height | 37 MM (1.46 IN) |
| Product Length | 200 MM (7.87 IN) |
| Product Width | 66 MM (2.60 IN) |
| HTS/Schedule B Number | 90303330 |
| ECCN Number | 8.0331E+12 |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
