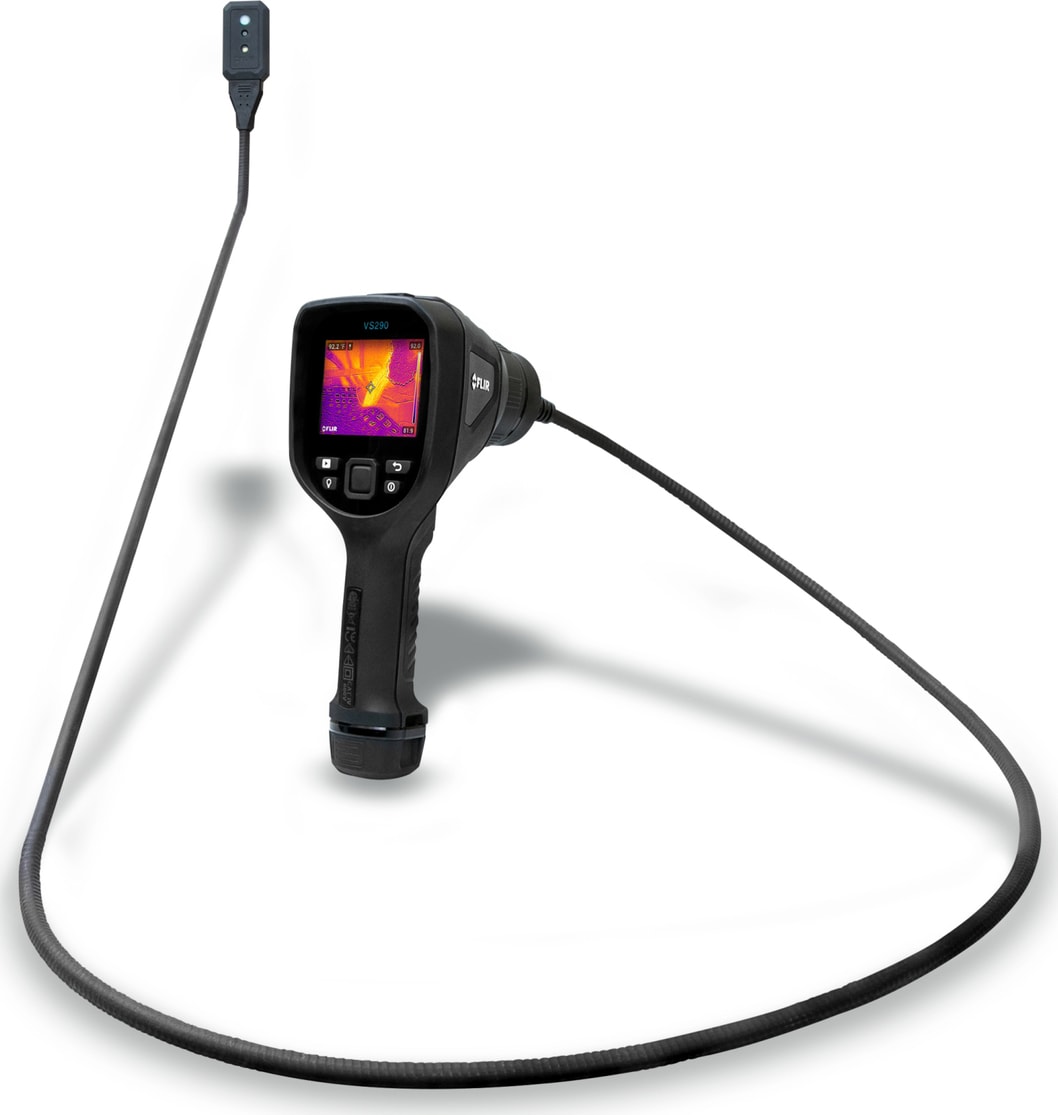

FLIR VS290-32 – Thermal MSX Videoscope Kit with Rectangular Probe Tip
- Industrial thermal and visual videoscope
- Quickly and safely find hidden dangers in difficult-to-access locations
- Troubleshoot problems from a safe distance
- 160 x 120 true thermal imager and 2 MP visual camera
- Narrow, 2m field-replaceable camera probe
The FLIR VS290-32 is an industrial thermal and visual videoscope designed to help professionals quickly and safely find hidden dangers in difficult-to-access locations, especially underground electrical distribution vaults. Featuring a 160 × 120 true thermal imager and FLIR MSX® (Multi-Spectral Dynamic Imaging), the VS290-32 enables users to catch hot spots before a failure occurs to maintain uptime. The 2m camera probe makes it possible to easily inspect through small openings – improving productivity and reducing diagnostic time. Plus, the CAT IV 600 V safety rating makes the VS290-32 a rugged and versatile tool for the most demanding environments in utility, manufacturing, and building maintenance applications.
INSPECT INACCESSIBLE AREAS SAFELY
Quickly find hidden faults without entering difficult-to access locations and other hard-to-reach spaces
- Troubleshoot problems from a safe distance with the 160 × 120 true thermal imager and 2 MP visual camera
- Easily maneuver the narrow 2 m field-replaceable camera probe to inspect underground electrical distribution vaults, inside large gearboxes, motors, attics, crawl spaces, and other industrial applications
- Instantly recognize the location of a temperature issue with FLIR MSX, which extracts scene details from the built-in visual camera and embosses them onto the full thermal image
IDENTIFY, DOCUMENT, AND SHARE
Improve workflow and communicate potential issues before they become major problems
- View findings clearly on the large 3.5-inch color display, and use color alarms (isotherms) to quickly identify areas of concern
- Save images and videos using the included SD memory card, and upload to a PC via USB-C Cable
- Quickly create and share reports with team members to prioritize repairs using FLIR Thermal Studio
VERSATILE, RUGGED, AND RELIABLE
Use the VS290-32 in the most demanding environments
- Provides a high level of protection against dust and water (IP67 rated camera tip, IP54 rated base unit and probe)
- Easily replace the camera probe while in the field
- Conduct electrical inspections safely (CAT IV 600 V rated)
Manufacturer Specs
| Imaging and optical data | |
|---|---|
| IR resolution | 160 × 120 pixels |
| Digital image enhancement | Yes |
| Thermal sensitivity/NETD | <100 mK |
| Field of view (FOV) | 57° × 44° |
| Minimum focus distance | 0.15 m |
| Minimum focus distance with MSX | 0.65 m |
| Image frequency | 8.7 Hz |
| Focus | Fixed |
| Detector data | |
| Focal plane array/spectral range | Uncooled microbolometer/7.5–14 µm |
| Detector pitch | 12 μm |
| Image presentation | |
| Display resolution | 320 × 240 pixels |
| Surface brightness (cd/m2) | 1000 |
| Screen size | 3.5″ |
| Viewing angle | 70° |
| Color depth (bits) | 18-bit (262,144 color) |
| Aspect ratio | 4:3 |
| Display technology | TFT |
| Image modes |
|
| Gallery | Yes |
| Measurement | |
| Object temperature range | –10°C to 400°C (14°F to 752°F) (at room temperature) |
| Accuracy | At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F). 0 to 100°C (32 to 212°F): ±3°C (±5.5°F) 100 to 400°C (212 to 752°F): ±3% |
| Measurement analysis | |
| Spotmeter |
|
| Color palettes |
|
| Probe | |
| Structure and Dimensions | 2 m total length with 3 segments:
Probe tip dimensions: 71.7 x 40.5 x 11 mm (2.8 x 1.6 x 0.43 in) |
| Probe Insulation | 2-layers of ruggedized insulating material. Black outer layer and bright yellow inner layer. |
| Set-up | |
| Set-up commands | Local adaptation of units, language, date, and time formats Screen brightness (high, medium, low) Gallery, deletion of images |
| Emissivity correction | 3 pre-set and 1 custom emissivity setting |
| Languages | Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, simplified Chinese, Spanish, Swedish, traditional Chinese, Turkish |
| Storage of images | |
| Storage media | 16 GB SDHC |
| Image storage capacity | 80 000 |
| Image file format | Radiometric JPEG |
| Video file format | MPEG 4 |
| Digital camera | |
| Resolution | 2 MP (1600 × 1200 pixels) |
| Field of view | 83° |
| Worklight | |
| Model | CREE XPG2 |
| LED CCT | 6500 K |
| LED CRI | 70 |
| Beam angle | 120° |
| Rated power | 0.7 W |
| Light output (Lumens) | 117 lm |
| Data communication interfaces | |
| USB | USB Type-C: data transfer/power |
| Wi-Fi | Peer to peer (ad hoc) or infrastructure (network) |
| Power system | |
| Battery type | Rechargeable Li ion battery |
| Battery voltage | 3.65 V, 5.7 Ah, 21 Wh |
| Battery operating time | >5 hours (full LCD brightness and worklight on) |
| Charging system | In camera or two-bay charger |
| Charging time (using two-bay charger) | 2.5 hours to 90% capacity with charging status indicated by LEDs |
| Power management | Adjustable: off, 5 minutes, 15 minutes, 30 minutes |
| Environmental data | |
| Operating temperature range | –10 to +50°C (14 to 122 °F) |
| Storage temperature range | –20 to +60°C (-4 to 140 °F) |
| Humidity (operating and storage) | 5% to 90% relative humidity (RH) non-condensing |
| EMC | EN 61326-1, EN 61000-6-2 (Immunity), EN 61000-4-2 (ESD), EN61000-6-3 (Emissions), FCC 47 CFR Part 15 Class B |
| Magnetic fields | EN 61000-4-8 |
| Radio spectrum | 2.4 GHz |
| Encapsulation | Probe tip : IP67 (IEC 60529) Main body/Tube : IP54 |
| Shock | 25 g (IEC 60068-2-29) |
| Vibration | 2 g (IEC 60068-2-6) |
| Drop | Designed for 2 m (6.6 ft) |
| Safety | CAT IV 600 V |
| Environmental safety | ETL (EN 61010-1), CE, RCM, FCC WEEE, RoHS, REACH Department of Energy and California Title 20 Battery Charging Systems Efficiency |
| Physical data | |
| Weight (including battery) | 1.14 kg (2.52 lbs) |
| Size (L × W × H) |
|
Tech Specs
Thermal Imagers/Building and Industrial Thermal Imagers Template |
|
|---|---|
| Detector Size | 160 x 120 Sensor |
| Thermal Sensitivity | 100 mK (NETD) |
| Temperature Range Max | 752 F |
| Temperature Range Min | 14 F |
| Image Frequency | 8.7 Hz |
| Field of View | 57 x 44 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | Yes |
| Video Output | Yes |
| Focus | Fixed |
| Laser Spot | No |
| Picture in Picture | Yes |
| Video Recording | Yes |
| Moveable Spots | No |
| Touch Screen Display | No |
| Minimum Focus Distance | 0.15 M |
| Accuracy | At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F) 0 to 100°C (32 to 212°F): ±3°C (±5.5°F) 100 to 400°C (212 to 752°F): ±3% |
| Battery operating time Continuous | 5 HR |
| Camera Light | No |
| IR Digital Zoom | No |
| Voice Annotation | No |
| Intrinsically Safe | No |
Borescopes / Boroscopes/Video Borescopes Template |
|
| Shaft Length | 2 M (78.74 IN) |
| Shaft Diameter | 1.6 IN (0.025 M) |
| Detachable Screen | No |
| Screen Type | LCD |
| Video Resolution (Boroscopes) | 320×240 |
| Image Resolution | 320×240 |
| Max Probe Distance with Extensions | 2 M (6.56 Ft) |
| IP Rating | IP54, IP67 |
Test Equipment General Attributes |
|
| Shipping Weight | 28.67 LBS |
| HTS/Schedule B Number | 9013809000 |
| ECCN Number | 6A993.a |
| Country of Origin | Taiwan |
