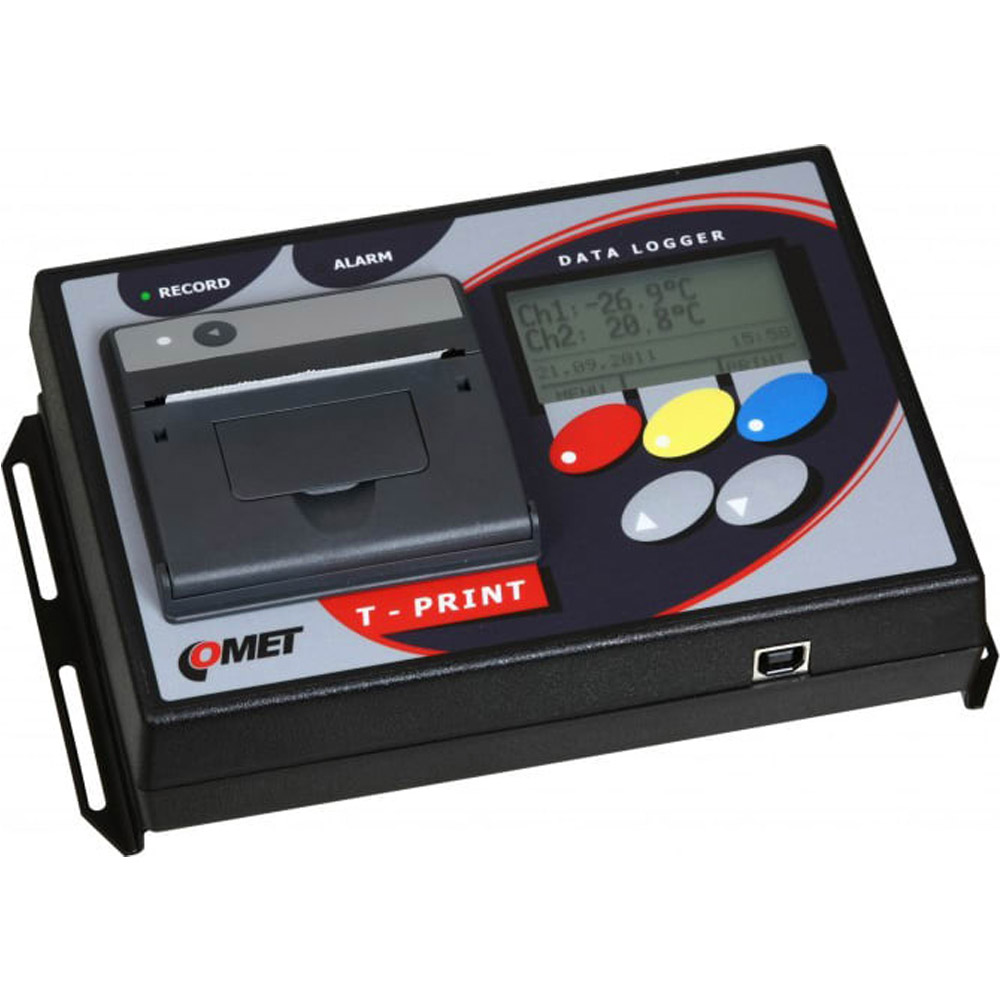

Data Logger Comet G0241 With Printer Temperature Recorder

Descripción

Comet G0241 Dual Channel Thermometer with Thermoprinter Two Binary Inputs, RS232 Output

• With thermoprinter, two binary inputs, RS232 output
• Record from one or two temperature probes
• Delivery Ticket, Journey Ticket and Multi Day printouts
• Selectable numerical and graphical print-out
• Print from the last record to the history till button is pressed

Dual Channel Thermometer with Thermoprinter Two Binary Inputs, RS232 Output

Measured temperatures from both channels and actual binary inputs states are displayed on dual line illuminated LCD display and are recorded in adjustable time interval to internal, non-volatile memory (recorded values will not be lost even in disconnection recorder from power). Record of actual or average values is user selectable including minimum and maximum temperatures. If memory is fulfilled oldest recorded values are overwritten with new values. Setting and control of recorder is performed from keyboard recorder or by means of computer. In both cases setting can be protected by password.

Recorder is equipped alarm function. I.e. each 5 seconds (independently on adjusted logging interval) temperature is measured from both external probes, measured value from each channel is compared with two adjustable limits for each channel. Limit exceeding is indicated on the LCD display, by the red LED and acoustically. Alarm evaluation is possible to enable or disable for each channel (including signals from binary inputs). Audible indication can be also enabled or disabled. Measured values recorded in recorder memory can be printed out on built-in printer as table or graphs or transferred means of USB communication cable to personal computer for evaluation. Also Delivery Ticket with current temperature value(s) and header can be printed.

Recorder conforms EN 12830 requirements: conditions for class 1 accuracy and is suitable for temperature record during storing (S) and transport (T) of food in climate environment code A, B. If recorder is used during transport, it must be installed in cabin of the vehicle.

Recorder Connection to Source and Temperature Probes

1. External power source (vehicle battery)
2. Fuse box of the vehicle
3. Power cable
4. Temperature probes
5. Cables of binary inputs
6. Magnetic door contact
7. RS232 device – e.g. GSM modem
8. USB socket for PC connection
9. Mounting holders

Manufacturer Specs

Comet G0241 Specifications
Technical parameters	Value
Measured Value	Temperature
Construction Type	For External Temperature Probes Pt1000
Temperature Measuring Range	-90 to 260 °C
Two-State Input	Yes
Lcd Display	Yes
Lcd Display	Yes
Built-In Printer	Yes
Operating temperature range	-30 to +65°C
Accuracy of temperature input without probe	±0.2°C
Resolution of the reading	0.1°C
Digital output	serial RS232
Real time clock	year, leap year, month, day, hour, minute, second
Data logging interval	adjustable from 1 minute to 60 minutes
Total memory capacity	1MB – up to 172 000 records
Dimensions	250 x 242 x 110 mm (W x H x D)
Power	9 to 32 V dc, protected against alternator load shedding + internal Lithium battery
Consumption while printing	approximately 8 W
Consumption – not printing	approximately 0.1 W
IP protection	IP65
Warranty	3 years

Tech Specs

Test Equipment General Attributes
Country of Origin	Czech Republic
