Descripción
Digilent6069-471-001
- TC-32 and TC-32-EXP: 64 thermocouple inputs and 80 digital I/O
- 24-bit resolution
- 3 S/s/ch sample rate
- Supports thermocouple types J, K, R, S, T, N, E, and B
- 40 digital I/O (80 digital I/O when using TC-32-EXP)

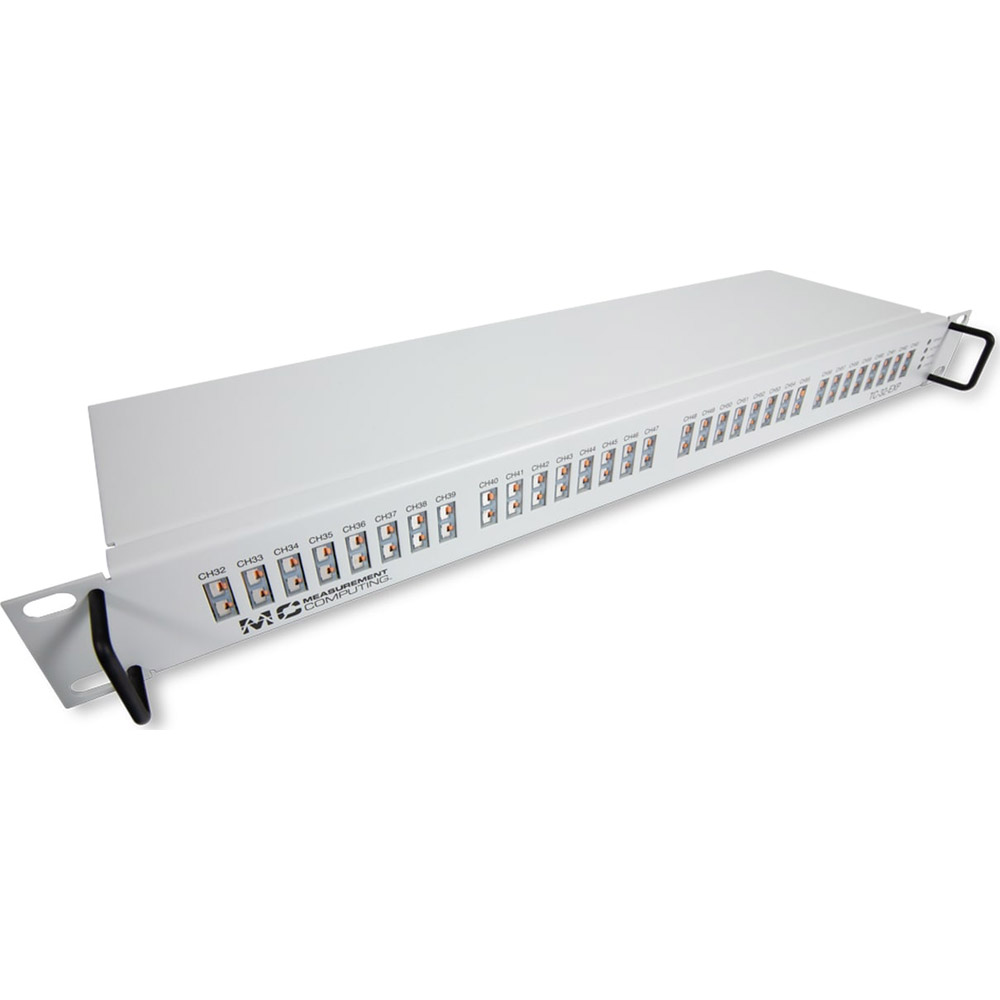

High-Precision Thermocouple Measurement USB/Ethernet System (TC-32 and TC-32-EXP)
Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.
The TC-32 is a thermocouple measurement system and includes both USB and Ethernet interfaces. It features 32 channels (expandable to 64 using TC-32-EXP), 24-bit resolution for making precision temperature measurements, 3 S/s/ch sample rate, 8 digital inputs, and 32 digital outputs (expandable to 80 digital I/O).
The TC-32 is ideal for high-channel-count temperature applications. The system can also be rack-mounted.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, Linux, and Python.
Tech Specs
Dataloggers / Data Acquisition/Data Recorders Template |
|
|---|---|
| Sampling Frequency (Recorders) | 3 S/s (0.000003 MS/S) |
Test Equipment General Attributes |
|
| Unique Features | TC-32 and TC-32-EXP |
| Interfaces I/O | LAN / Ethernet, Other, USB |
| Product Height | 19 IN |
| Product Length | 6.15 IN |
| Product Width | 1.74 IN |
| Shipping Weight | 2 LBS |
